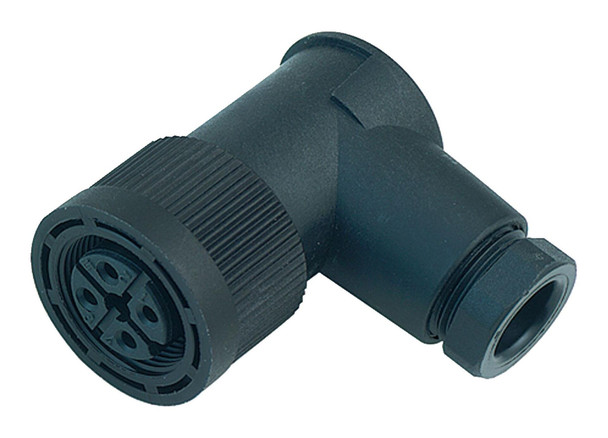

Our M12 circular connectors with screw locking of the 714 series have 4 contacts with a rated current of 16 A at 250 V and comply with protection class IP67. They are available as straight and angled cable connectors with screw clamp connection as well as flange versions with solder and dip solder connections.
General Features| Part no. | 09 0440 00 04 |
|---|
| Connector design | Female angled connector |
|---|
| Version | Connector socket angled |
|---|
| Connector locking system | screw |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 1.50 mm² / AWG 16 |
|---|
| Cable outlet | 6.5-8.0 mm |
|---|
| Twistability | 60° (6 coding options) |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 50 Mating cycles |
|---|
| Weight (g) | 28.51 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 4000 V |
|---|
| Rated current (40 °C) | 16 A (5 A UL) |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PBT/PA |
|---|
| Contact body material | PA (UL94 V-0) / PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | CuSnZn (Optalloy) |
|---|
| Locking material | PA |
|---|
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | e6ac4a18-de99-41d6-8922-cde7e88c5965 |
|---|
