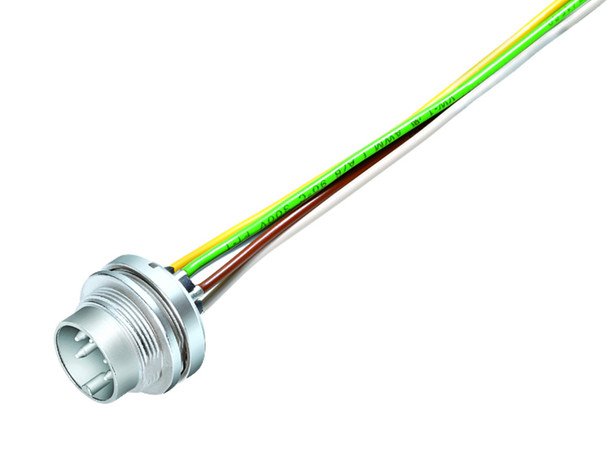

Binder 09-0315-702-05 M16 IP40 Male panel mount connector, Contacts: 5 (05-a), unshielded, single wires, IP40

No reviews yet Write a Review
$19.20
Binder 09-0315-702-05 M16 IP40 Male panel mount connector, Contacts: 5 (05-a), unshielded, single wires, IP40 | American Cable Assemblies
Binder 09-0315-702-05 M16 IP40 Male panel mount connector, Contacts: 5 (05-a), unshielded, single wires, IP40
Binder 09-0315-702-05 M16 IP40 Male panel mount connector, Contacts: 5 (05-a), unshielded, single wires, IP40
SKU:
BN09-0315-702-05
MPN:
09-0315-702-05
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M16, series 680, Miniature Connectors
Numbers of contacts:
5 (05-a)
$19.20

Frequently Bought Together:

Binder 09-0315-702-05 M16 IP40 Male panel mount connector, Contacts: 5 (05-a), unshielded, single wires, IP40 | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

General Features
Part no. 09 0315 702 05
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP40
Cross-sectional area AWG 22
Temperature range from/to -30 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 17.32
Customs tariff number 85369010

Electrical Parameters
Rated voltage 300 V
Rated impulse voltage 1500 V
Rated current (40 °C) 5.0 A
Insulation resistance ? 10¹? ?
Pollution degree 1
Overvoltage category I
Insulating material group II
EMC compliance unshielded
Material
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2c414f77-3d3c-4145-ac0f-d1f43c5dee2a
