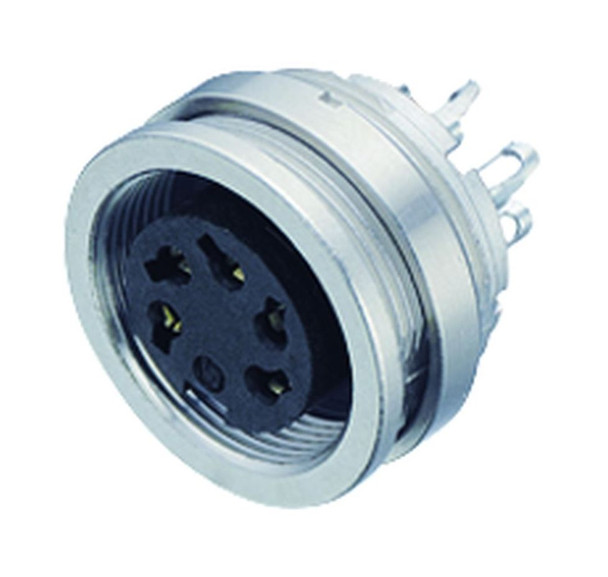

Binder 09-0128-09-07 M16 IP67 Female panel mount connector, Contacts: 7 (07-a), unshielded, solder, IP67, UL

No reviews yet Write a Review
$16.72
Binder 09-0128-09-07 M16 IP67 Female panel mount connector, Contacts: 7 (07-a), unshielded, solder, IP67, UL | American Cable Assemblies
Binder 09-0128-09-07 M16 IP67 Female panel mount connector, Contacts: 7 (07-a), unshielded, solder, IP67, UL
Binder 09-0128-09-07 M16 IP67 Female panel mount connector, Contacts: 7 (07-a), unshielded, solder, IP67, UL
SKU:
BN09-0128-09-07
MPN:
09-0128-09-07
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M16, series 723, Miniature Connectors
Numbers of contacts:
7 (07-a)
Contact plating:
Au (gold)
$16.72

Frequently Bought Together:

Binder 09-0128-09-07 M16 IP67 Female panel mount connector, Contacts: 7 (07-a), unshielded, solder, IP67, UL | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.
General Features
Part no. 09 0128 09 07

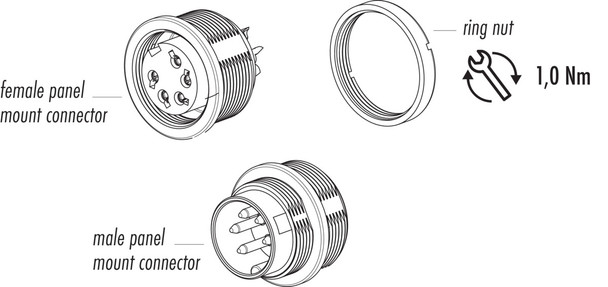

Connector design Female panel mount connector
Version Connector socket straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -40 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 10.06
Customs tariff number 85369010

Electrical Parameters
Rated voltage 125 V
Rated impulse voltage 800 V
Rated current (40 °C) 5.0 A
Insulation resistance ? 10¹? ?
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Material
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number f58e192d-56ec-4c00-96ce-b9757f42ab60
