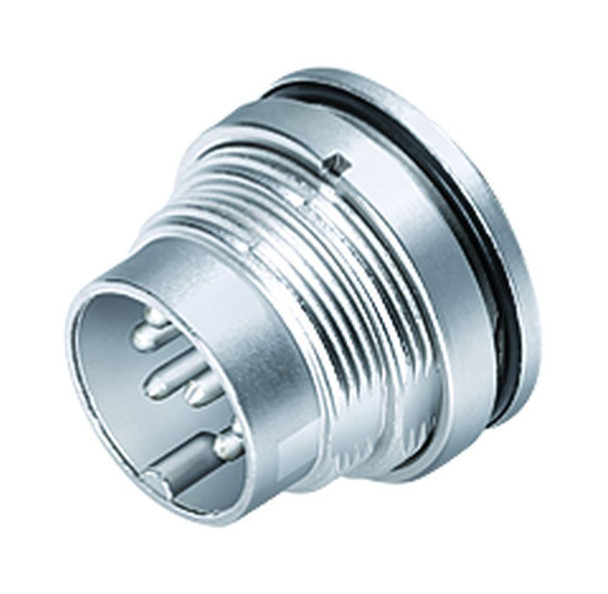

Binder 09-0115-89-05 M16 IP67 Male panel mount connector, Contacts: 5 (05-a), unshielded, solder, IP67, UL, front fastened

No reviews yet Write a Review
$19.96
Binder 09-0115-89-05 M16 IP67 Male panel mount connector, Contacts: 5 (05-a), unshielded, solder, IP67, UL, front fastened | American Cable Assemblies
Binder 09-0115-89-05 M16 IP67 Male panel mount connector, Contacts: 5 (05-a), unshielded, solder, IP67, UL, front fastened
Binder 09-0115-89-05 M16 IP67 Male panel mount connector, Contacts: 5 (05-a), unshielded, solder, IP67, UL, front fastened
SKU:
BN09-0115-89-05
MPN:
09-0115-89-05
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M16, series 723, Miniature Connectors
Numbers of contacts:
5 (05-a)
Contact plating:
Au (gold)
$19.96

Frequently Bought Together:

Binder 09-0115-89-05 M16 IP67 Male panel mount connector, Contacts: 5 (05-a), unshielded, solder, IP67, UL, front fastened | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.
General Features
Part no. 09 0115 89 05
Connector design Male panel mount connector
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -40 °C / 95 °C
Mechanical operation > 500 Mating cycles
Weight (g) 11.62
Customs tariff number 85369010

Electrical Parameters
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current (40 °C) 6.0 A
Insulation resistance ? 10¹? ?
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Material
Housing material Zinc die-cast nickel-plated
Contact body material PBT (UL94 V-0)
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 6877e212-2ccc-4602-9716-3622bf47cbe2
