The 711 series are subminiature M9 screw termination connectors available in panel mount and cable connector versions. Both measure 11.5mm diameter and can be supplied with 2 to 8 contacts depending on the application. The rated current ranges 1 to 4A at 125V. They feature solder termination a protection degree of IP40 and have been designed for over 500 mating cycles.

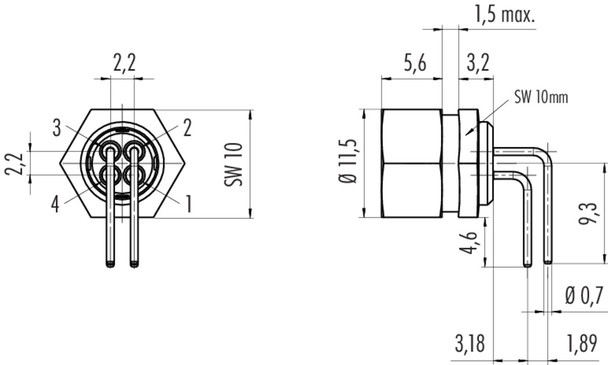

General Features| Part no. | 09 0082 32 04 |
|---|
| Connector design | Female angled panel mount connector |
|---|
| Version | Connector socket angled |
|---|
| Connector locking system | screw |
|---|
| Termination | THT |
|---|
| Degree of protection | IP40 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 3.08 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 3,0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PA (UL94 V-0) |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | e6bee8ad-49ef-4251-b5bb-91d2f585bed4 |
|---|
