720 Series snap-in miniature circular connectors have 3 to 12 contacts depending on the application. Medical-grade design is DEHP-free, grey-white, similar to RAL 9002, and is available as cable or flange connectors. Other colours can be ordered. The connector system is IP67 rated, the cable connectors have solder terminals, the flange connectors have solder/ dip solder terminals. Users can expect more than 500 mating cycles.
General Features| Part no. | 08 2433 400 001 |
|---|

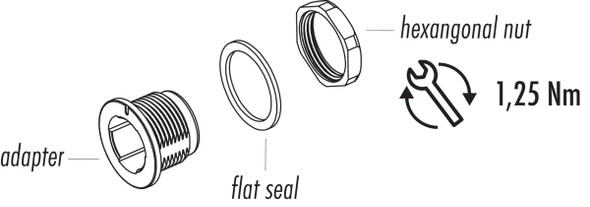

| Connector design | Adapter |
|---|
| Version | Adapter |
|---|
| Weight (g) | 7.51 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| EMC compliance | unshielded |
|---|
Material| Housing material | PA GF 25 |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | ea29cc8e-2495-438a-89e2-a342d4633f08 |
|---|
