Description

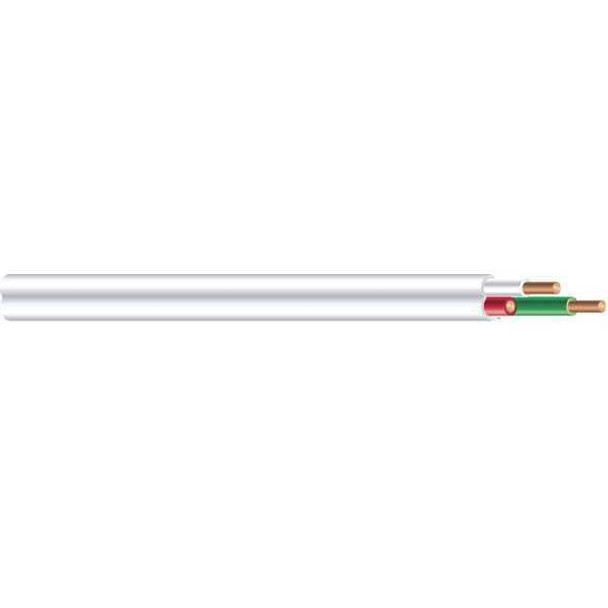

Thermostat Wire, Number of Conductors 3, Wire Size 18 AWG, Cable Type Plenum, Jacket Color White, Length 500 ft, Voltage 300 V, Conductor Design Solid, Cable Rating CL2P
Specifications
| Applications | ApplicationThermostat Wire is a class 2 power-limited circuit cable for use in thermostat control applications from floor to floor and up access shafts without conduit |
|---|---|
| Cable Rating | CL2P |
| Cable Type | Plenum |
| Cable Type Wire and Cable | Plenum |
| Conductor Design | Solid |
| Construction | ConstructionSolid copper conductors with 6 mils of insulationConductors are covered with a Low Smoke PVC jacketRipcord |
| Item | Thermostat Wire |
| Jacket Color | White |
| Length | 500 ft |
| Length Straight Wireway | 500 ft |
| Max Temp | 60 Degrees C |
| No of Conductors | 3 |
| No of Strands | 1 |
| Nom Od Mils | 153mils |
| Nominal Outside Dia | 0.16 in |
| Number of Conductors | 3 |
| Package Type | Spool |
| Size Awg or Kcmil | 18 AWG |
| Spool Coil Length | 500 ft. |
| Standards | CL2P Plenum Rated, UL Listed |
| Voltage | 300 V |
| Wire Size | 18 AWG |
| Wire Size Wire and Cable | 18 AWG |
| Wire and Cable Item | Thermostat Wire |
