Description

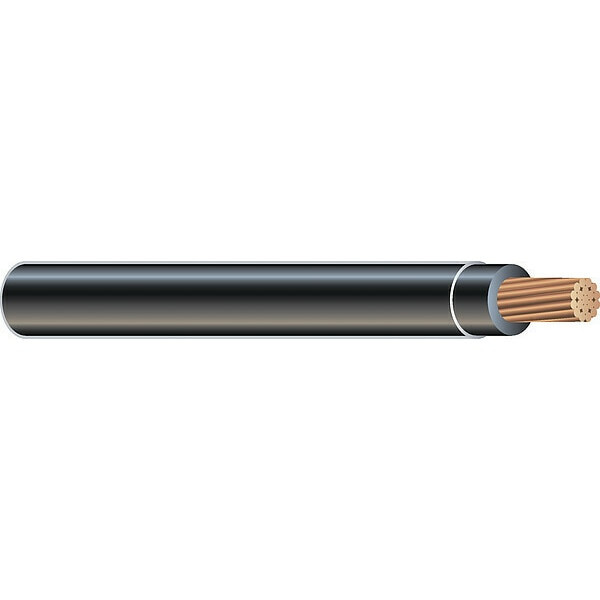

Fixture Wire, Trade Designation TFFN, Wire Size 18 AWG, Wire Color Black, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.09 in, Packaging Spool, Jacket Color Black, Voltage 600V AC, Stranding 16
Specifications
| Allowable Ampacity | 6 |
|---|---|
| Applications | ApplicationSouthwireî Type TFFN may be used as fixture wire, machine tool wiring, or appliance wiring material as specified in the National Electrical Code. Voltage for all applications is 600 volts. Allowable temperatures are as follows: |
| Conductor Design | Stranded |
| Construction | ConstructionSouthwireî Type TFFN or MTW or AWM copper conductors are annealed (soft) copper, insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polyamide) jacket is applied. Available in black, white, red, blue, green, yellow, orange, brown, purple, gray, and pink. Some colors standard, some subject to economic order quantity. |
| Insulation Material | PVC |
| Insulation Material Wire and Cable | PVC |
| Insulation Thickness Mils | 15mils |
| Item | Fixture Wire |
| Jacket Color | Black |
| Jacket Material | Nylon |
| Jacket Material Wire and Cable | Nylon |
| Jacket Thickness Mils | 5mils |
| Length | 500 ft |
| Length Straight Wireway | 500 ft |
| Max Amps | 6 |
| No of Strands | 16 |
| Nom Od Mils | 85mils |
| Nominal Outside Dia | 0.09 in |
| Number of Conductors | 1 |
| Packaging | Plastic Spool |
| Size Awg or Kcmil | 18 AWG |
| Spool Length | 500 ft. |
| Standards | UL |
| Stranded Solid | Stranded |
| Stranding | 16 |
| Temp Rating | 194 Degrees F |
| Trade Designation | TFFN |
| Voltage | 600V AC |
| Wire Color | Black |
| Wire Size | 18 AWG |
| Wire Size Wire and Cable | 18 AWG |
| Wire Type | TFFN |
| Wire Type Wire and Cable | TFFN |
| Wire and Cable Item | Building Wire |
