Description

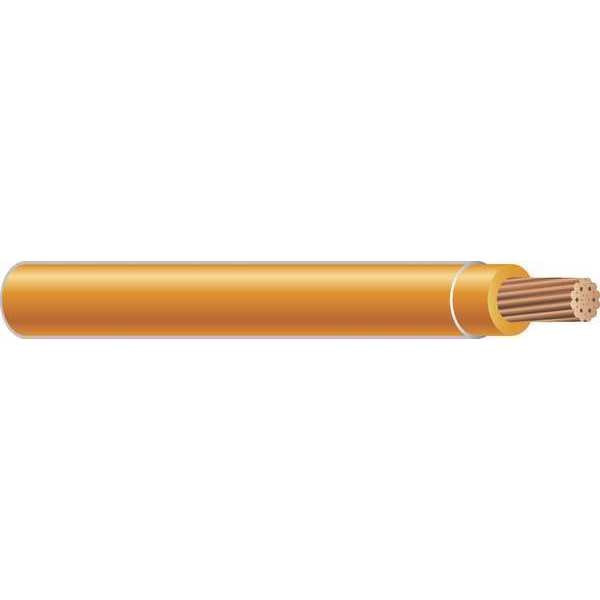

This Southwire Building Wire is a high-quality product that will ensure your electrical wiring project goes smoothly. The wire is made of THHN and has a 12 AWG rating. It comes with a 500 ft length and 600V AC voltage rating. The orange nylon jacket makes it easy to see the wire, so you can easily trace its path in case of an emergency. This building wire has stranded conductors for added flexibility. When it comes to electrical wiring, you need quality products like this Southwire Building Wire to ensure your job gets done right.
Specifications
| Allowable Ampacity At 60C | 20 |
|---|---|
| Allowable Ampacity At 75C | 20 |
| Allowable Ampacity At 90C | 20 |
| Application | Wet Locations and Locations Exposed to Oil (Below 75ðC), Dry Locations (Below 90ðC) |
| Applications | ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75ð C or dry locations not to exceed 90ð C or locations not to exceed 75ð C when exposed to oil. |
| Conductor Design | Stranded |
| Construction | ConstructionSouthwireî THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Insulation Material | PVC |
| Insulation Material Wire and Cable | PVC |
| Insulation Thickness Mils | 15mils |
| Item | Building Wire |
| Jacket Color | Orange |
| Jacket Material | Nylon |
| Jacket Material Wire and Cable | Nylon |
| Jacket Thickness Mils | 5mils |
| Length | 500 ft |
| Length Straight Wireway | 500 ft |
| Max Amps | 20 |
| No of Conductors | 1 |
| No of Strands | 19 |
| Nom Od Mils | 132mils |
| Nominal Outside Dia | 0.13 in |
| Number of Conductors | 1 |
| Packaging | Plastic Spool |
| Size Awg or Kcmil | 12 AWG |
| Spool Length | 500 ft. |
| Standards | UL,E34382 |
| Stranded Solid | Stranded |
| Stranding | 19 |
| Temp Rating | 194 Degrees F |
| Trade Designation | THHN |
| Voltage | 600V AC |
| Wire Color | Orange |
| Wire Size | 12 AWG |
| Wire Size Wire and Cable | 12 AWG |
| Wire Type | THHN |
| Wire Type Wire and Cable | THHN |
| Wire and Cable Item | Building Wire |
