Description

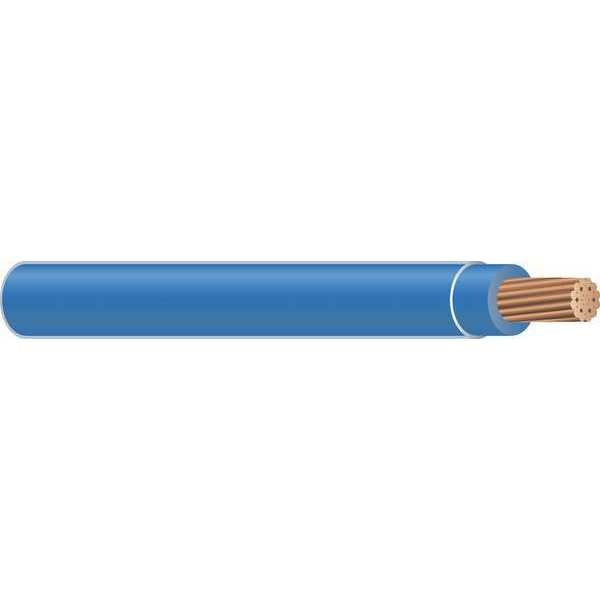

Southwire's Building Wire is the perfect solution for wiring and connecting your electrical devices. This high-quality wire will not disappoint you. The Southwire Building Wire is made of THHN and PVC. It has a voltage rating of 600V AC, and can handle up to 20 amps. Its 12 AWG size means it can carry more current than other building wires. This blue wire has a length of 500 ft and comes in a blue nylon jacket. The Southwire Building Wire offers top quality that you will be happy with for years to come.
Specifications
| Allowable Ampacity At 60C | 20 |
|---|---|
| Allowable Ampacity At 75C | 20 |
| Allowable Ampacity At 90C | 20 |
| Application | Wet Locations and Locations Exposed to Oil (Below 75ðC), Dry Locations (Below 90ðC) |
| Applications | ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75ð C or dry locations not to exceed 90ð C or locations not to exceed 75ð C when exposed to oil. |
| Conductor Design | Stranded |
| Construction | ConstructionSouthwireî THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN. |
| Insulation Material | PVC |
| Insulation Material Wire and Cable | PVC |
| Insulation Thickness Mils | 15mils |
| Item | Building Wire |
| Jacket Color | Blue |
| Jacket Material | Nylon |
| Jacket Material Wire and Cable | Nylon |
| Jacket Thickness Mils | 5mils |
| Length | 500 ft |
| Length Straight Wireway | 500 ft |
| Max Amps | 20 |
| No of Conductors | 1 |
| No of Strands | 19 |
| Nom Od Mils | 132mils |
| Nominal Outside Dia | 0.13 in |
| Number of Conductors | 1 |
| Packaging | Plastic Spool |
| Size Awg or Kcmil | 12 AWG |
| Spool Length | 500 ft. |
| Standards | UL,E34382 |
| Stranded Solid | Stranded |
| Stranding | 19 |
| Temp Rating | 194 Degrees F |
| Trade Designation | THHN |
| Voltage | 600V AC |
| Wire Color | Blue |
| Wire Size | 12 AWG |
| Wire Size Wire and Cable | 12 AWG |
| Wire Type | THHN |
| Wire Type Wire and Cable | THHN |
| Wire and Cable Item | Building Wire |
