In Stock
Southwire

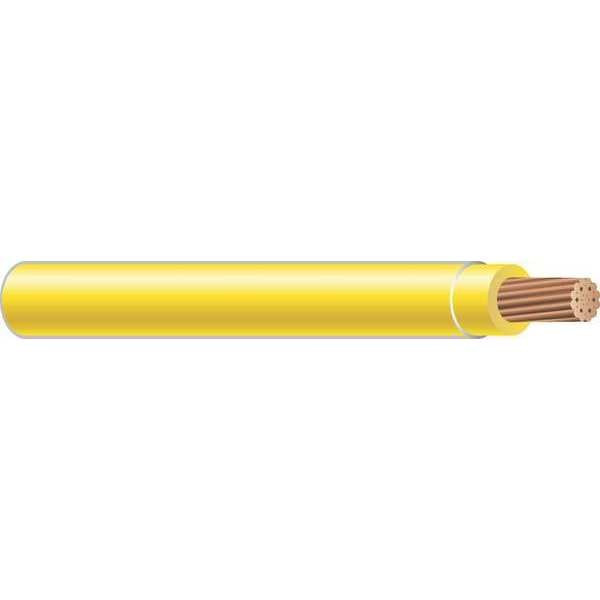

Southwire 22960901 Building Wire, THHN, 14 AWG, 500 ft, Yellow, Nylon Jacket, PVC Insulation

No reviews yet Write a Review
$97.83
SKU:
SW22960901
UPC:
32886228353
Availability:
Lead time - Stock items ship 1-2 days
Minimum Purchase:
1 unit
Current Stock:
Item:
Building Wire
Trade Designation:
THHN
Wire Size:
14 AWG
$97.83

Frequently Bought Together:

Southwire 22960901 Building Wire,  THHN,  14 AWG,  500 ft,  Yellow,  Nylon Jacket,  PVC Insulation | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Building Wire, Trade Designation THHN, Wire Size 14 AWG, Wire Color Yellow, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.11 in, Packaging Spool, Jacket Color Yellow, Voltage 600V AC, Stranding 19

Specifications

Allowable Ampacity At 60C15
Allowable Ampacity At 75C15
Allowable Ampacity At 90C15
ApplicationWet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
ApplicationsApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Conductor DesignStranded
ConstructionConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Insulation MaterialPVC
Insulation Material Wire and CablePVC
Insulation Thickness Mils15mils
ItemBuilding Wire
Jacket ColorYellow
Jacket MaterialNylon
Jacket Material Wire and CableNylon
Jacket Thickness Mils5mils
Length500 ft
Length Straight Wireway500 ft
Max Amps15
No of Conductors1
No of Strands19
Nom Od Mils113mils
Nominal Outside Dia0.11 in
Number of Conductors1
PackagingPlastic Spool
Size Awg or Kcmil14 AWG
Spool Length500 ft.
StandardsUL,E34382
Stranded SolidStranded
Stranding19
Temp Rating194 Degrees F
Trade DesignationTHHN
Voltage600V AC
Wire ColorYellow
Wire Size14 AWG
Wire Size Wire and Cable14 AWG
Wire TypeTHHN
Wire Type Wire and CableTHHN
Wire and Cable ItemBuilding Wire
