Description

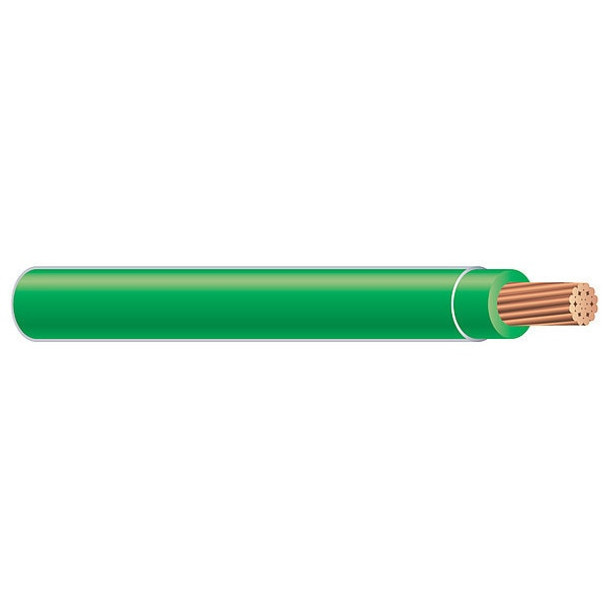

Building Wire, Trade Designation THHN, Wire Size 6 AWG, Wire Color Green, Length 100 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.22 in, Packaging Coil, Jacket Color Green, Voltage 600V, Stranding 7
Specifications
| Allowable Ampacity At 60C | 55 |
|---|---|
| Allowable Ampacity At 75C | 65 |
| Allowable Ampacity At 90C | 75 |
| Application | Cable Trays and Branch Circuits in Commercial or Industrial Usage, Conduit |
| Applications | ApplicationSouthwireî SIMpull THHNî copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHNî copper conductors are designed to be installed without application of a pulling lubricant.THWN-2- Wet or dry locations not to exceed 90ð C or locations not to exceed 75ð C when exposed to oil |
| Conductor Design | Stranded |
| Construction | ConstructionSouthwireî SIMpull THHNî copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpullî Technology. Marked as THWN-2. |
| Insulation Material | PVC |
| Insulation Thickness Mils | 30mils |
| Item | Building Wire |
| Jacket Color | Green |
| Jacket Material | Nylon |
| Jacket Thickness Mils | 7mils |
| Length | 100 ft |
| Length Straight Wireway | 100 ft |
| No of Conductors | 1 |
| No of Strands | 19 |
| Nom Od Mils | 255mils |
| Nominal Outside Dia | 0.22 in |
| Number of Conductors | 1 |
| Packaging | Coil |
| Size Awg or Kcmil | 6 AWG |
| Standards | UL Listed |
| Stranding | 7 |
| Temp Rating | 194 Degrees F |
| Trade Designation | THHN |
| Voltage | 600V |
| Wire Color | Green |
| Wire Size | 6 AWG |
