Description

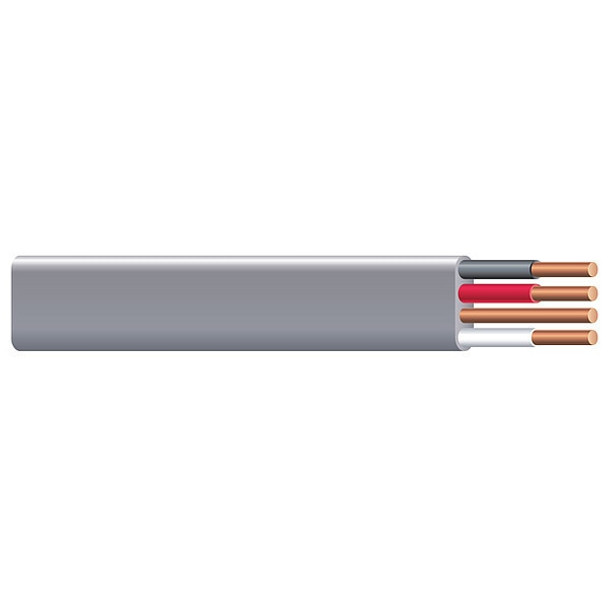

Underground Feeder Cable, Number of Conductors 3 with Bare CU Ground, Wire Size 8 AWG, Jacket Material PVC, Jacket Color Gray, Length 125 ft, Conductor Design Stranded, Voltage 600 V, Wire Color Bare, Black, Red, White, Nominal Outside Dia. 1.06 in x 0.30 in, Temp. Rating 194 Degrees F, Application Outside Post Lamps, Pumps, Standards REACH, RoHS, UL Listed, Insulation Material PVC with Nylon Covering, Packaging Spool
Specifications
| Application | Outside Post Lamps, Pumps |
|---|---|
| Applications | ApplicationSouthwireî copper UF-B cable is generally used as feeder to outside post lamps, pumps, and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90ðC (with ampacity limited to that for 60ðC conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 volts. |
| Conductor Design | Stranded |
| Construction | ConstructionSouthwireî copper UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire. Copper conductors are annealed (soft) copper, solid or compressed stranded. Phase conductors are polyvinyl chloride (PVC) insulated, nylon jacketed, color coded for identification purposes. Jacketed with sunlight, moisture and fungus resistant gray PVC. |
| Insulation Material | PVC with Nylon Covering |
| Insulation Thickness Mils | 30mils |
| Item | Underground Feeder Cable |
| Jacket Color | Gray |
| Jacket Material | PVC |
| Jacket Thickness Mils | 48mils |
| Length | 125 ft |
| Length Straight Wireway | 125 ft |
| No of Conductors | 3 |
| No of Grounds | 1 |
| No of Strands | 1, 7 |
| Nom Height Mils | 319mils |
| Nom Width Mils | 1059mils |
| Nominal Outside Dia | 1.06 in x 0.30 in |
| Number of Conductors | 3 with Bare CU Ground |
| Packaging | Spool |
| Size Awg | 10 |
| Size Awg or Kcmil | 8 AWG |
| Standards | REACH, RoHS, UL Listed |
| Temp Rating | 194 Degrees F |
| Voltage | 600 V |
| Wire Color | Bare, Black, Red, White |
| Wire Size | 8 AWG |
