Description

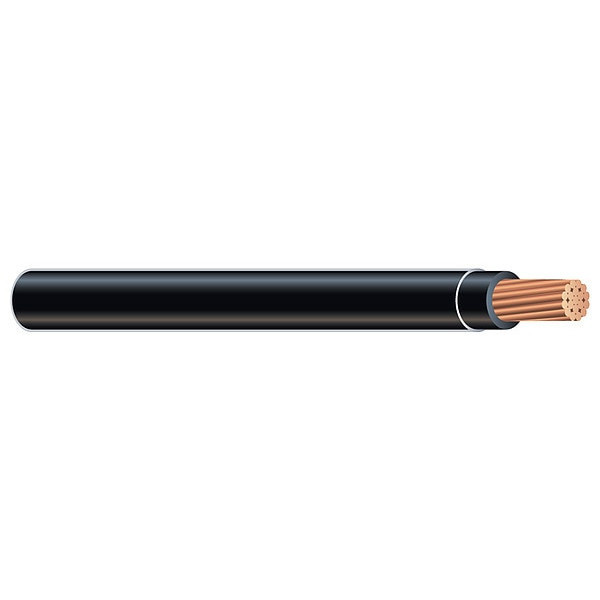

Building Wire, Trade Designation XHHW, Wire Size 10 AWG, Wire Color Black, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.17 in, Packaging Spool, Jacket Color Black, Voltage 600V, Stranding 7
Specifications
| Allowable Ampacity At 60C | 30 |
|---|---|
| Allowable Ampacity At 75C | 30 |
| Allowable Ampacity At 90C | 30 |
| Application | Feeders and Branch Circuit Wiring, Raceways for Services, Wet or Dry Conduit |
| Applications | ApplicationSouthwireî XHHW-2 copper conductors are primarily used in conduit, Cable Tray or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code. XHHW-2 copper conductors may be used in wet or dry locations at temperatures not to exceed 90ð C. Voltage rating for XHHW-2 conductors is 600 volts. Suitable for use in Health Care Facilities per Section 517.160 of the National Electrical Code where a dielectric constant of less than 3.5 maybe specified. |
| Conductor Design | Stranded |
| Construction | ConstructionSouthwireî SIMpull XHHW-2î copper conductors are annealed (soft) copper. Insulation is an abrasion, moisture, and heat resistant thermoset cross-linked polyethylene (XLPE). Conductor sizes 8 AWG and larger are marked sunlight resistant. Colors are available and may be subject to economic order quantity. |
| Insulation Material | PVC |
| Insulation Thickness Mils | 30mils |
| Item | Building Wire |
| Jacket Color | Black |
| Jacket Material | Nylon |
| Length | 500 ft |
| Length Straight Wireway | 500 ft |
| No of Conductors | 1 |
| No of Strands | 7 |
| Nom Od Mils | 177mils |
| Nominal Outside Dia | 0.17 in |
| Number of Conductors | 1 |
| Packaging | Spool |
| Size Awg or Kcmil | 10 AWG |
| Standards | UL Listed |
| Stranding | 7 |
| Temp Rating | 194 Degrees F |
| Trade Designation | XHHW |
| Voltage | 600V |
| Wire Color | Black |
| Wire Size | 10 AWG |
