Description

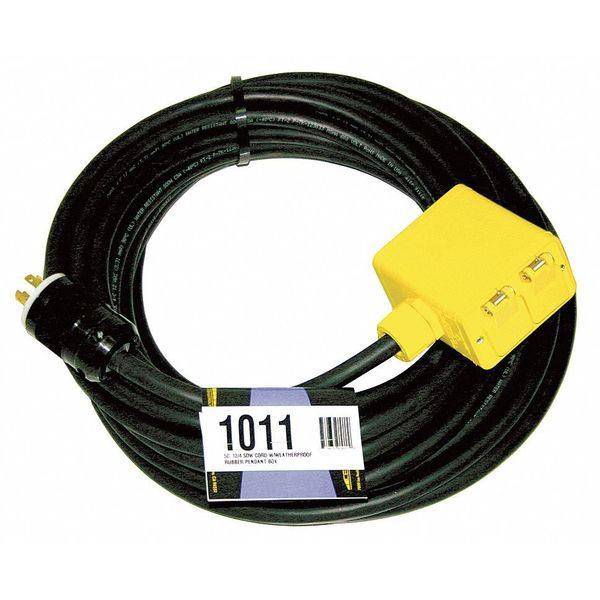

Generator Cord with Pendant Box, Number of Outlet Boxes 1, Number of Outlets 4, Cord Length 50 ft, Max. Amps 20 A, Plug Configuration NEMA L14-20P, Receptacle Configuration NEMA 5-20R, Distance Between Boxes Only 1 Box, Wire Size 12 AWG, Temp. Rating -40 Degrees to 194 Degrees F, Location Outdoor, Voltage 120/240V AC, Trade Designation SOW, Jacket Color Black, Cord Shape Round, Jacket Material Rubber, Number of Conductors 4, Color Black
Specifications
| Color | Black |
|---|---|
| Cord Length | 50 ft |
| Cord Length Ext Cords and Outlet Strips | 50 ft. |
| Cord Shape | Round |
| Distance Between Boxes | Only 1 Box |
| Features | Features & BenefitsTemporary Power for Construction Sites, Events, Entertainment, Shelter Systems, Shipyards, etc.Makes use of L14-20 125/250V 3P4W 4-Prong Receptacle found on common generatorsHeavy-Duty Rubber, Industrial Duty, Type SOOW cable for years of usage and zero compliance issuesCordsets have federal specification (WC596) grade plug and connectorsExcellent resistance to oil and moistureHigh flexibility, excellent abrasion resistance |
| Gauge Conductor | 12/4 |
| Gauge Conductor Ext Cords and Outlet Strips | 12/4 |
| Indoor Outdoor | Indoor, Outdoor |
| Item | Generator Cord with Pendant Box |
| Jacket Color | Black |
| Jacket Material | Rubber |
| Jacket Material Ext Cords and Outlet Strips | Rubber |
| Location | Outdoor |
| Max Amps | 20 A |
| Max Amps Ext Cords and Outlet Strips | 20.0 |
| NEC Cord Designation | SOW |
| NEC Cord Designation Ext Cords and Outlet Strips | SOW |
| NEMA Plug Configuration | L14-20P |
| NEMA Plug Configuration Ext Cords and Outlet Strips | L14-20P |
| NEMA Receptacle Configuration | 5-20R |
| Nominal Outside Dia | 0.65 in |
| Number of Conductors | 4 |
| Number of Outlet Boxes | 1 |
| Number of Outlets | 4 |
| Plug Configuration | NEMA L14-20P |
| Plug Configuration Ext Cords and Power Strips | Straight, No Swivel |
| Plug Style | Straight |
| Power Indicator | No |
| Receptacle Configuration | NEMA 5-20R |
| Shape | Round |
| Shape Ext Cords and Outlet Strips | Round |
| Size | 1/2" |
| Standards | UL |
| Temp Range | -40 Degrees to 194 Degrees F |
| Temp Range Ext Cords and Outlet Strips | -40 Degrees to 194 Degrees F |
| Temp Rating | -40 Degrees to 194 Degrees F |
| Trade Designation | SOW |
| Voltage | 120/240V AC |
| Voltage Ext Cords and Outlet Strips | 120/240VAC |
| Wire Size | 12 AWG |
