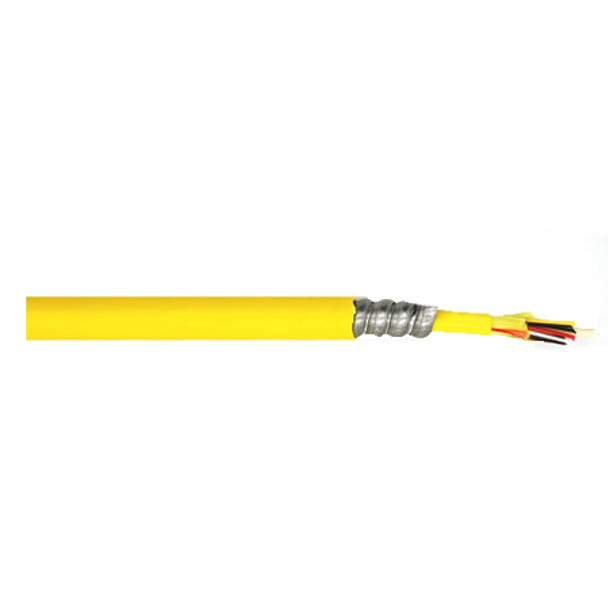

Description
Features
- 6 Fibers
- Tight Buffered Fiber
- OFCP Jacket
- TIA/EIA FOTP Standards 455, TIA/EIA-598, UL 910, GR-409-CORE
- UV Resistant Remguard Plenum Rated Polymer
- Armor: Aluminum Interlocking Armor
- Water swellable aramid yarns are pulled in with tight buffered fibers under the inner sheath
- Applications: Outdoors direct burial, Indoors in the plenum space, Tray Installations
- 4500 Spool
- Jacket Color: Yellow
Specifications
Fiber Type (P/N) - SM OS2 G.652.D (76K)
Maximum Attenuation (dB/km)
- 1310 nm - 0.40 dB/km
- 1550 nm - 0.30 dB/km
Gigabit Ethernet Minimum Link Distance (Meters)
- 1300 nm - 5000 Meters
10 Gigabit Ethernet Minimum Link Distance (Meters)
- 1300 nm - 10000 meters
Cable Without Armor
Maximum Tensile Load
- Installation - 2&4 fiber 1405N / 315lbf, 6&8 fiber 1610N / 362lbf, 12&24 fiber 2700N / 600lbf
- Long Term - 2&4 fiber 455N / 102lbf, 6&8 fiber 535N / 120lbf, 12&24 fiber 600N / 135lbf
Resistance
- Crush Resistance - 100 N/cm
- Impact Resistance (min.) - 25 Impacts
Flexing
- Flexing ± 90° (min.) - 25 Cycles
Temperature Rating
- Operation - -20°C to +85°C
- Installation - 0°C to +75°C
- Storage - -40°C to +85°C
Cable With Armor
- Maximum Tensile Load - 600N / 150lbf
- Crush Resistance - 1000 N/cm
