Description
Fire alarm systems serve as a life line and a connection to first responders. When a signal is transmitted to central monitoring center, failure is not an option, it must be guaranteed. Conventional Fire Alarm Systems have been around for many years and have changed little.
Features
- FPLR
- 14 AWG 4 Conductors
- Solid Bare Copper Conductor
- Shielded Cable with Jacket
- Polyvinyl Chloride Insulation Material, PVC Jacket
- NEC Article 760, UL Subject 1424
- 140°F Max
- 1000' Reel
- Jacket Color: Red

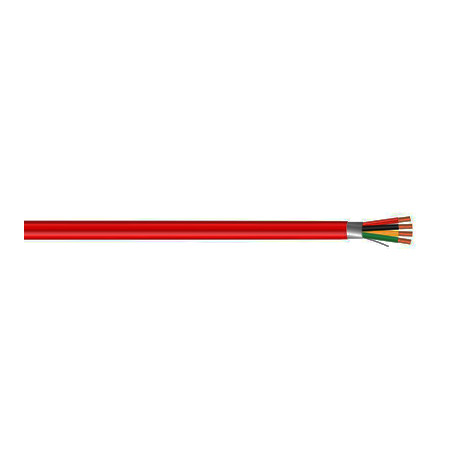

- Riser rated four conductor shielded cable used for fire protective signaling circuit applications
Specifications
Electricals
- Suggested Working Voltage - 300 Volts, rms
Technical Details
- Temperature Rating
- Operation - -20°C to +60°C
- Nominal Weight - 74 lbs. / 1,000 ft
Standards
- NEC Article 760
- UL Subject 1424, Type FPLR
Codes & Listings
- (ETL)US
