Description
Wet Location copper cables must be durable and able to withstand severe environmental conditions. Outside Plant cables are often exposed to oil, heat, cold, moisture as well as numerous chemicals. Wet Location, OSP and buried cables are required to stand up against impact, remain flexible and maintain signal integrity.
Features
- 20 AWG
- Solid Bare Copper Conductor
- Shielded Cable with Jacket
- Cellular Polyethylene Dielectric, Polyethylene Jacket
- 140ºF Max
- 1000' Reel
- Jacket Color: Black

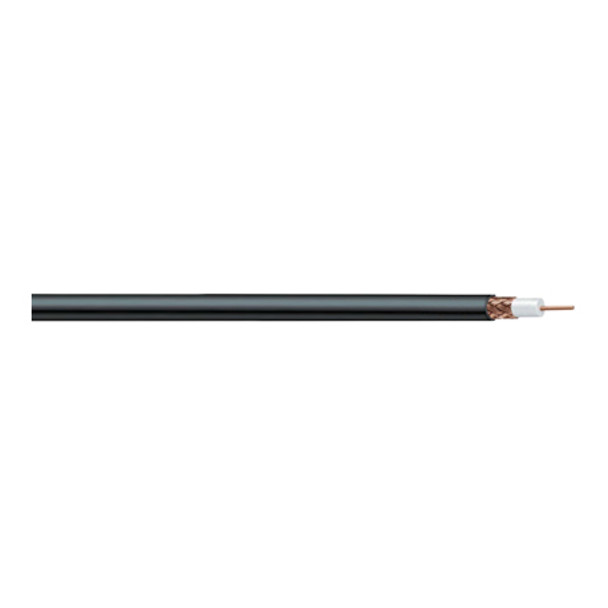

- RG-59/U type coaxial cable with a waterblock tape and UV resistant polyethylene jacket used for Broadcast and MATV applications
Specifications
Electricals
- Nominal Capacitance - 17.3 pF/ft
- Nominal Characteristic Impedance - 75 ohms
- Nominal Velocity of Propagation - 78%
- Nominal Attenuation dB per 100 feet - 2.7 dB @ 100 MHz, 3.8 dB @ 200 MHz, 6.3 dB @ 500 MHz, 8.5 dB @ 900 MHz
Technical Details
- Temperature Rating
- Operation - -20°C to +60°C
- Nominal Weight - 23 lbs. / 1,000 ft
Codes & Listings
- Non-Listed
