Description

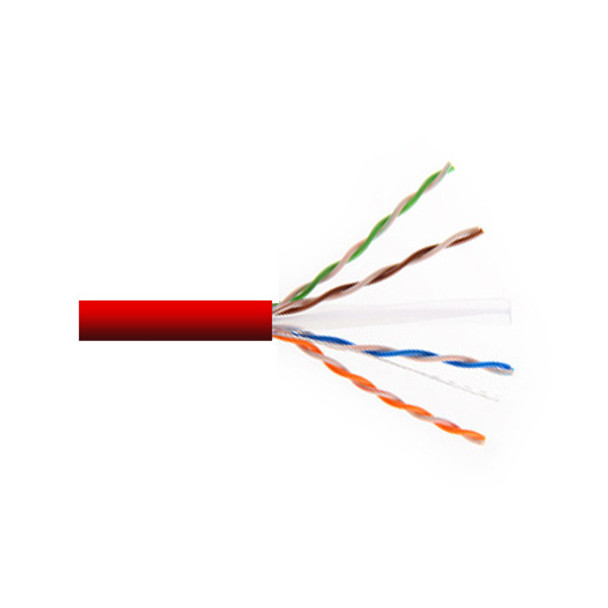

Activate Powered Cable Solutions (PCS) is offered by Remee Wire & Cable in response to the growing demand for Power over Ethernet (PoE) and other powered cabling applications requiring extended distances. Remees new Activate PCS line includes a selection of standard and customized Category and hybrid copper and fiber optic cable configurations to accommodate the varying needs of both small and large cabling projects.
Features
- CMR
- 23 AWG 4 Conductors
- Copper Conductor
- Cable with Jacket
- PVC Jacket
- 140°F Max
- 1000'
- Jacket Color: Red
- Supports all category 6A applications including Ethernet 10 Gigabit, 100BASETX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422
Specifications
Electrical Parameters
- Mutual Capacitance - 14 pF/ft nominal
- Capacitance Unbalance - 330 pF/ft maximum
- Velocity of Propagation - 70%
- Max. Conductor D.C.R. - 28.6 ohm/1000 feet
- Max. DCR Unbalance - 5%
- Max. Delay Skew - 45 ns/100m
- Characteristic Impedance - from 0.772 - 100 MHz 100 ± 15%, from 101 - 200 MHz 100 ± 22%, from 201 - 500 MHz 100 ± 32%
Technical Details
- Temperature Rating
- Installation: -0°C to 50°C
- Operation: -20°C to 60°C
- Nominal Diameter - 0.320 in.
- Maximum Installing Tension - 40.8 lbf
- Minimum Bending Radius - 1.250 inch
- Nominal Cable Weight - 44 lb/1000 feet
Standards
- ANSI/TIA/EIA 568C.2 Category 6A
- National Electric Code Article 800
- 11801:2002 Category 6A
Codes & Listings
- CMR Rating FT6
- C(ETL)US CMR
