Description

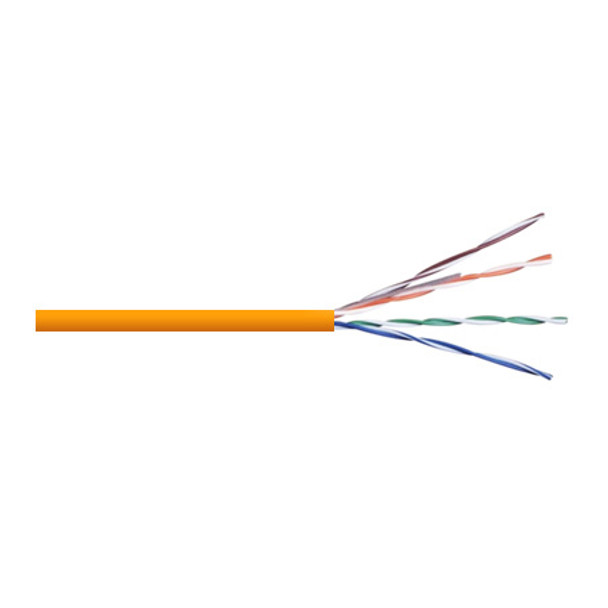

Activate Powered Cable Solutions (PCS) is offered by Remee Wire & Cable in response to the growing demand for Power over Ethernet (PoE) and other powered cabling applications requiring extended distances. Remees new Activate PCS line includes a selection of standard and customized Category and hybrid copper and fiber optic cable configurations to accommodate the varying needs of both small and large cabling projects.
Features
- CMP
- 24 AWG 4 Conductors
- Solid Bare Copper Conductor
- Unshielded Cable with Jacket
- PVC Jacket, FEP Insulation
- UL Subject 444, UL 910
- 140°F Max
- 1000'
- Jacket Color: Orange
- Supports all category 5 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, and Ethernet 1000BASE-T
Specifications
Electrical Parameters
- Mutual Capacitance - 14 pF/ft nominal
- Capacitance Unbalance - 330 pF/ft maximum
- Velocity of Propagation - 72%
- Max. Conductor D.C.R. - 28.6 ohm/1000 feet
- Max. DCR Unbalance - 5%
- Max. Delay Skew - 45.0 ns/100m
- Characteristic Impedance - from 0.772 - 100 MHz 100 ± 15%, from 101 - 250 MHz 100 ± 22%, from 251 - 350 MHz 100 ± 32%
Technical Details
- Temperature Rating
- Installation: -0°C to 50°C
- Operation: -2°C to 60°C
- Nominal Diameter - 0.185 in.
- Nominal Cable Weight - 22 lbs/1000 feet
Standards
- ANSI/TIA/EIA 568C.2 Category 5e
- ISO/IEC 11801 Category 5e
- National Electric Code Article 800
- UL Standard 444
Codes & Listings
- CMP Rating FT6
- ETL Electrically Verified to ANSI/TIA/EIA 568C.2 Category 5e
- C(ETL)US CMP
