Description

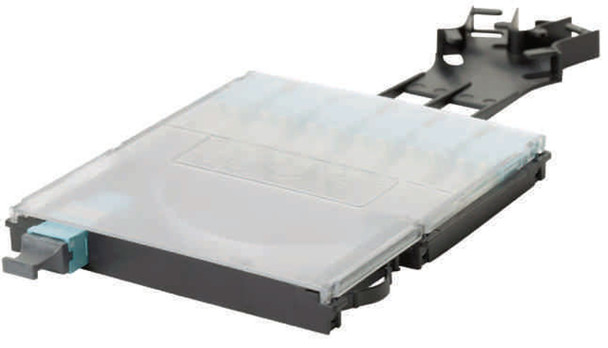

The Procyon™ Fiber Cassette is designed to provide easy transition of trunk cables terminated with MTP/MPO connections to LC duplex connectivity in your data center. It is part of an overall pre-terminated cabling architecture, with a small form factor, integrated cable management and cassette extraction features, it delivers high-density and at the same time maintains easy accessibility.
Applications:
High-density
Data Center
Horizontal panel for server/storage cabinets
Vertical panel chassis for switching cabinets
Any bulk transport of LC duplex connections in a trunk cable
10GBit/s Ethernet
Fiber channel for storage area networks
Product Features
- Accommodates 1 MTP to 12 LC fiber connections
- Integrated left or right directive management
- Pull tab feature for easy cassette extraction
- Proprietary bow clip positioning and retention mechanism
- Clear cover for easy visual inspection
- Easily upgradable to 40/100 GBit/s Ethernet by replacing with an MTPMTP cassette
- Can be inserted in forward or reverse orientation
