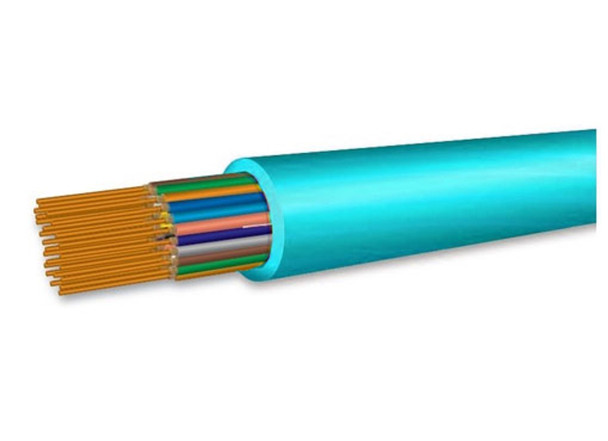

OCC BX018DALE9QR OCC, BX, Breakout Series, 18-Strand, 2.5mm, Tight Buffered, Indoor/Outdoor, OFNR Rated, OM4, 50/125, Multimode, Aqua Jacket (Priced Per Foot)

18 Strand, OCC BX Series Breakout, Indoor/Outdoor, OFNR Riser, Multimode 50/125

Reference Previous Part Number:BX18-150D-ALS/900-OFNR

Note: This item may require 24 hours for cut and prep before shipping.

CABLE CHARACTERISTICS: B-SERIES BREAKOUT RISER CABLES (WITH 2.5MM SUBCABLES)

BREAKOUT SERIES FIBER OPTIC CABLE TYPE OFNR RISER PRODUCT SPECIFICATIONS

Applications

• Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary
• Easiest cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired

Features

• High performance components and construction
• UL Listed in accordance with NEC sections 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
• Most rugged and easy to install cable design for enterprise cabling applications
• Core-Locked™ outer jacket design for installation survivability, long-term, trouble free service
• Ideal for use in long, vertical installations
• 2.5mm subcables can be direct-terminated with standard connectors (2.0mm and 2.9mm subcables also available)
• Subcabled fiber is environmentally and mechanically protected
• Ideal for use in point-to-point runs in adverse environments
• Direct termination to subcable provides additional strain relief for better connector retention during moves, adds, and changes
• Design is ideal for direct pulling with mesh grips
• Cable materials are Indoor/Outdoor UV, water and fungus resistant
• Wide operating temperature range of -40°C to +85°C
• High performance 900 µm tight-buffered coating on each optical fiber for environmental and mechanical protection
• Interlocking armor can be applied to cables as an alternative to conduit installation

Cost savings

• 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber. See page PI-6 for typical termination approach.
• Direct termination to subcable may eliminate the need for patch panels and patch cords and reduce connector loss
• High crush resistance may eliminate the need for innerduct

Mechanical and Environmental Performance

Note: Optical Cable Corporation reserves the right to change this specification without prior notification.
