Description

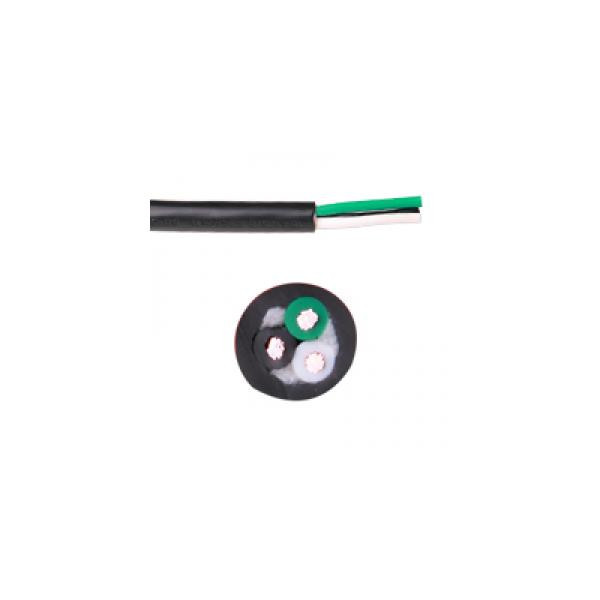

SJTOW (Service Junior Thermoplastic with oil and weather resistance) 12AWG 3 conductor bulk power cord wire for use in the USA and Canada in applications requiring 20A 300V or less. This 12 gauge 3 conductor SJTOW style flexible portable cordage is sold cut to order in 1 foot increments.
| Attribute | Specification |
|---|---|
| Country Category | North America |
| Voltage | 300V |
| Amperage | (under 50ft long) 20 or 25 amps |
| Cord Length | Bulk |
| Wire Jacket Standard | SJTOW |
| Gauge | 12AWG |
| Conductors | 3 |
| Copper Wire Stranding | 65 strands of 0.254mm² wire |
| Conductors Material | Stranded and Annealed bare Copper |
| Conductor Insulation Material | PVC |
| Jacket Material | PVC |
| Jacket Temp. Rating | 105°C |
| Wire Outer Diameter | 11.2mm |
| Conductor Color Code | NACC (black, white, green) |
| 36 inch Spool Maximum Quantity | 6,560 feet |
| 24 inch Spool Maximum Quantity | 1,640 feet |
| Certifications | cUL, CSA |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
