Description

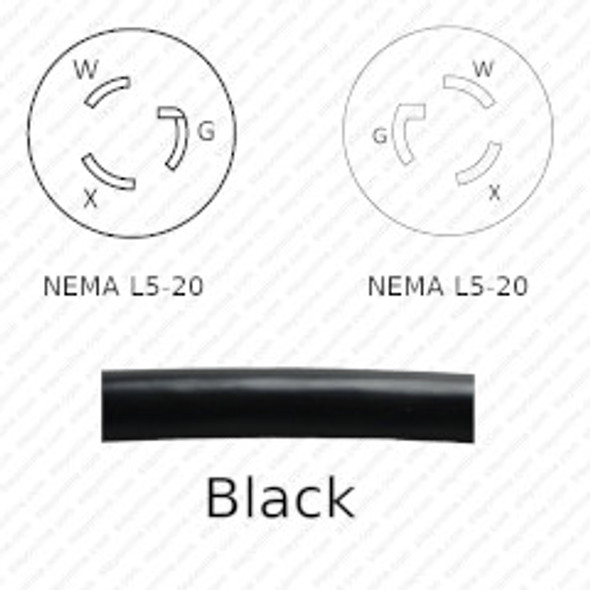

| Male Plug | NEMA L5-20 |
| Female Connector | NEMA L5-20 |
| Voltage | 125 Volts |
| Amperage | 20 Amps |
| Cable Length | 3.0 Meter / 10 Feet |
| Tolerance | ± 50 mm / ± 2 inches for molded cords ± 100 mm / ± 4 inches for mechanical cords |
| Conductor Size | 12 Gauge AWG |
| Conductor Count | 3 wires |
| Conductor Color Code | Black, White, Red, Green | North American Color Code (NACC) |
| Outside Diameter | 11.9-12.3mm |
| Cable Jacket | North America SJT |
| Jacket Material | PVC |
| Jacket Temperature Rating | 105° C |
| Color | Black |
| Testing | Each cord is tested for dielectric voltage-withstand (Hi-Pot), polarization and continuity. |
| Certification(s) | US & Canada - cULus |
| Packaging | Loose & Bundled |
| Weight | 1.805 lbs |
