Description

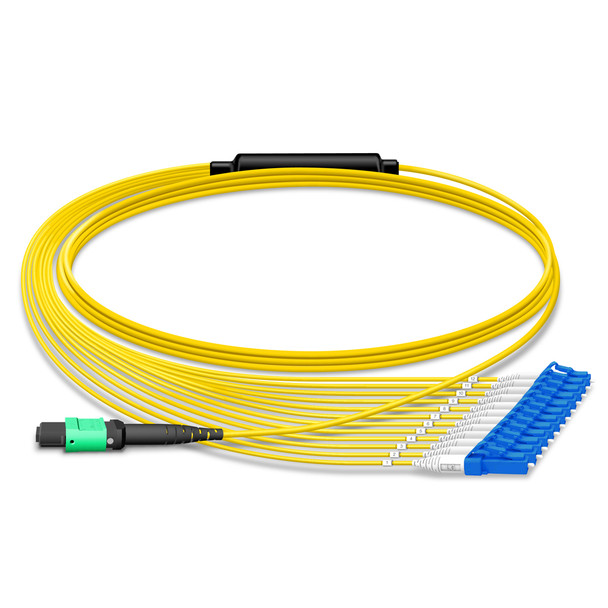

MTP® Breakout Cables, also commonly known as MTP® Harness Cables, MTP® Fan-Out Cables and MTP® Hydra Cables, are primarily used to break out an MTP® trunk cable into discrete connectors in order to feed into active equipment such as data distribution patch panels, including plenum applications. With US Conec MTP® connectors, Corning MIC® 250 2.0 Cable and Senko LC connectors, MTP® breakout cable splits one 12-strand fiber optic cable into 12 individual LC cables, and quickly adds 8 LC ports to your network at a time.
Specifications:
Specifications:
- Made in the USA (Palmer, MA)
- Connector A: MTP® Female
- Connector B: LC Simplex
- Fiber Type: OS2 (single mode 9/125μm)
- Wavelengths: >1310nm / 1383nm / 1550nm
- Fiber Brand: Corning MIC® 250 2.0 Cable
- Fiber Count: 12
- Polish Type A: APC
- Polish Type B: UPC
- Jacket OD: 5.5mm
- Jacket color: Yellow
- Cable Rating: OFNP (Plenum)
- Fan-out length: 25 in. (635mm)
- Fan-out diameter: 2.0mm
- Minimum Bend Radius: 27.5mm
- RoHS Compliant: Yes
