Compact wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The installer can connect the very robust zinc die-cast wall outlet very easily and in the shortest possible time with an LSA installation tool without errors. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality with various certificates. The wall outlets are supplied in retail-friendly, separable cardboard packaging with 10 pieces each.

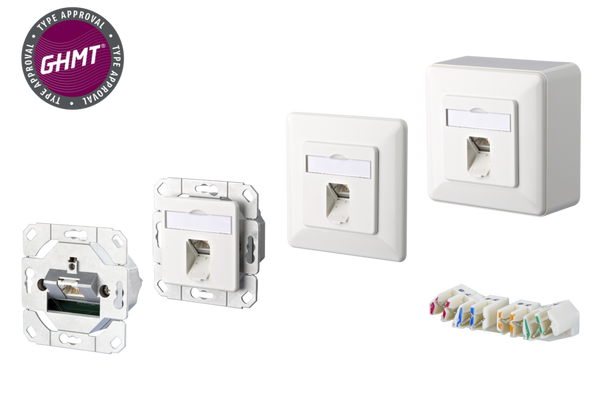

- variants, mounting type: AP, UP, UPk, UP0
- variants, number of ports: 1, 2
Resources
Specifications
General Data | Fields of application: | - structured building cabling
- office areas
- Distributed building services
|
|---|
| Mechanical measurement according to MICE: | M1 |
|---|
| Ingress measurement according to MICE: | I1 |
|---|
| Climatic measurement according to MICE: | C1 |
|---|
| Electromagnetic measurement according to MICE: | E2 |
|---|
| Design: | wall outlet |
|---|
| Shielding: | shielded |
|---|
| Transmission technology: | Copper |
|---|
| Wiring: | T568A, T568B |
|---|
Transmission characteristics | Category (ISO): | 6A |
|---|
| Class (ISO/IEC): | EA |
|---|
| Category (TIA): | 6A |
|---|
| Remote Powering: | yes |
|---|
| PoE: | IEEE 802.3af |
|---|
| PoE plus: | IEEE 802.3at |
|---|
| UPoE: | yes |
|---|
| 4PPoE: | IEEE 802.3bt |
|---|
| HDBaseT: | yes |
|---|
| SAT-IP: | yes |
|---|
| AVoverIP: | yes |
|---|
| Transmission rate up to 100 MBit (Fast Ethernet): | IEEE 802.3bw |
|---|
| Transmission rate up to 1 GBit (Fast Ethernet): | IEEE 802.3ab |
|---|
| Transmission rate up to 10 GBit: | IEEE 802.3an |
|---|
Connections/interfaces | Connector technology interface 1: | LSA terminal block |
|---|
| Connector technology interface 2: | RJ45-jack |
|---|
| Number of ports interface 2: | 1, 2 |
|---|
| Conductor cross section solid wire [AWG] min-max: | AWG 26/1 - AWG 22/1 |
|---|
| Cable sheath diameter [mm min.]: | 5.5 mm |
|---|
| Cable sheath diameter [mm max.]: | 10 |
|---|
| Cable sheath diameter [inch min.]: | 0.197 in. |
|---|
| Cable sheath diameter [inch max.]: | 0,394 |
|---|
| Module plug-in direction: | 45° downwards |
|---|
| Shield connection: | flexible contact spring |
|---|
| Ground connection: | 6.3 mm flat plug |
|---|
Electrical/optical characteristics | Current carrying capacity: | max. 1 A at 60 °C |
|---|
| Rated voltage: | max. 60 V DC |
|---|
| Contact resistance: | max. 20 mOhm |
|---|
| Through resistance: | max. 200 mOhm |
|---|
| Insulation resistance: | min. 500 MOhm |
|---|
| Dielectric strength conductor-conductor (secondary) [V DC]: | max. 1000 V DC |
|---|
| Dielectric strength conductor-conductor, peak value (secondary) [V AC]: | max. 1.000 V AC |
|---|
| Dielectric strength conductor-shield [V DC]: | max. 1500 V DC |
|---|
| Dielectric strength conductor-shield, peak value [V AC]: | max. 1500 V AC |
|---|
Mechanical data | Insertion and withdrawal force: | max. 30 N |
|---|
| Life - Number of mating cycles: | min. 750 |
|---|
Position/mounting of latch
standard installation position: | top |
|---|
| strain relief: | housing flap |
|---|
Materials and material properties | Material - Supporting frame: | GD-Zn (zinc die-cast) |
|---|
| Material - Contact: | Hyper Ph-Br |
|---|
| Material - Contact finish: | AuCo |
|---|
| Material - Shield: | CuSn6 |
|---|
| Halogen free: | yes |
|---|
| RoHS: | compliant |
|---|
Environmental conditions | Temperature - Storage °C [min.]: | -40 °C |
|---|
| Temperature - Storage °C [max.]: | 70 °C |
|---|
| Temperature - Operating °C [min.]: | -40 °C |
|---|
| Temperature - Operating °C [max.]: | 70 °C |
|---|
| IP class: | IP20 |
|---|
Certifications | GHMT Type Approval: | Component |
|---|
