In Stock
Metz Connect

Metz Connect. SR99SxxVBNN / SR99SxxVWNN

No reviews yet Write a Review
$0.37
Metz Connect SR99SxxVBNN / SR99SxxVWNN | American Cable Assemblies
Metz Connect. SR99SxxVBNN / SR99SxxVWNN
Metz Connect. SR99SxxVBNN / SR99SxxVWNN
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Mounting style:
reflow solderable (THR)
Centerline:
Single poles
Direction of connection:
90 °
Connection capacity single-wire:
0,2 - 1,5 mm²
Connection capacity multi-wire:
0,2 - 1,5 mm²
RoHS:
compliant
$0.37

Frequently Bought Together:

Metz Connect SR99SxxVBNN / SR99SxxVWNN | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

  • ethernet-capable spring clamp terminal block, THR solderable, double solder pins
  • direction of connection 90°
  • fittable without loss of poles
  • Tape & Reel packaging possible
  • finger push-button
  • test point and wire connection indicator

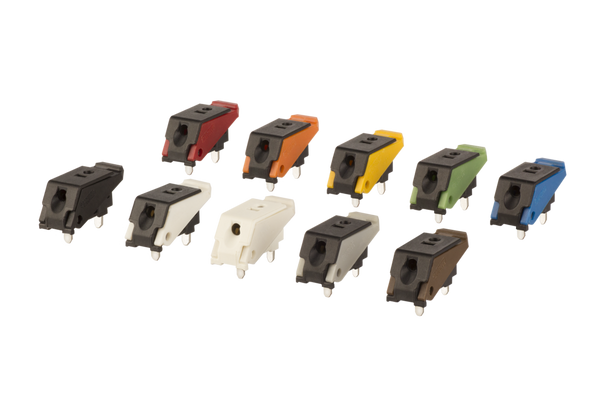

  • Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white

Resources

SR99S01VBNN00G7 blackView DataSheet
SR99S01VBNN01G7 creme whiteView DataSheet
SR99S01VBNN02G7 yellowView DataSheet
SR99S01VBNN03G7 greenView DataSheet
SR99S01VBNN04G7 redView DataSheet
SR99S01VBNN05G7 blueView DataSheet
SR99S01VBNN06G7 orangeView DataSheet
SR99S01VBNN07G7 grayView DataSheet
SR99S01VBNN08G7 brownView DataSheet
SR99S01VWNN01G7 whiteView DataSheet

Specifications

General Data
Solder pin length: 2.4 mm
Insulating material class: CTI 600
pole size: 1
Protection category: IP20
Min. insul. strip length: 7 mm
Rated current: 9 A
Connection Data
Connection capacity (single-wire): 0,2 - 1,5 mm²
Connection capacity (single-wire): AWG 24 - 16
Connection capacity (multi-wire): 0,2 - 1,5 mm²
Connection capacity (multi-wire): AWG 24 - 16
Material
insulating material: PPA
flammability class: V0
spring material: Spring steel
contact material: CuSn
Contact surface: Sn
Glow-Wire Flammability GWFI: 850 °C acc. to IEC 60695-2-12
Glow-Wire Flammability GWIT: 775 °C acc. to IEC 60695-2-13
Climatic Data
upper limit temperature: 105 °C
lower limit temperature: -40 °C
