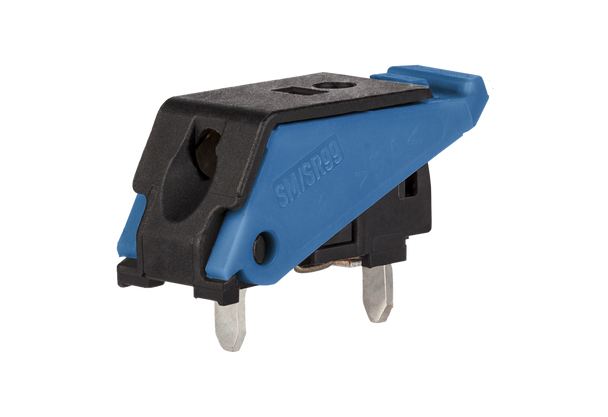

Description
- ethernet-capable spring clamp terminal block, THR solderable, double solder pins
- direction of connection 90°
- fittable without loss of poles
- color blue
- Tape & Reel packaging possible
- finger push-button
- test point and wire connection indicator
- Variants: black, creme white, yellow, green, red, blue, orange, gray, brown, white
Resources
| SR99S01VBNN05G7 blue | SR99S01VBNN05G7 | View DataSheet |
|---|
Specifications
| Solder pin length: | 2.4 mm |
|---|---|
| Insulating material class: | CTI 600 |
| Protection category: | IP20 |
| Connection capacity (single-wire): | 0,2 - 1,5 mm² |
|---|---|
| Connection capacity (single-wire): | AWG 24 - 16 |
| Connection capacity (multi-wire): | 0,2 - 1,5 mm² |
| Connection capacity (multi-wire): | AWG 24 - 16 |
| insulating material: | PPA |
|---|---|
| flammability class: | V0 |
| contact material: | CuSn |
| Contact surface: | Sn |
| Glow-Wire Flammability GWFI: | 850 °C acc. to IEC 60695-2-12 |
| Glow-Wire Flammability GWIT: | 775 °C acc. to IEC 60695-2-13 |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
