Description

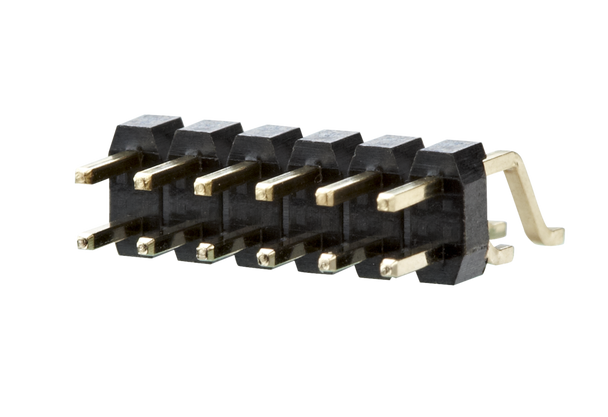

- pin header, SMT solderable
- centerline 2.00 mm, direction of connection 90°
- color black
- Tape & Reel packaging possible
- dual rows
Resources
| PM20CxxHBDN | PM20CXXHBDN | View DataSheet |
|---|
| PM20CxxHBDN | PM20CXXHBDN | View DataSheet |
|---|
| min. number of poles: | 2 |
|---|---|
| max. number of poles: | 40 |
| Protection category: | IP00 |
| insulating material: | PE-HT |
|---|---|
| Glow-Wire Flammability GWFI: | - |
| Glow-Wire Flammability GWIT: | - |
| contact pin material: | CuZn |
| contact pin surface: | Ni + Au Flash |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
