Description

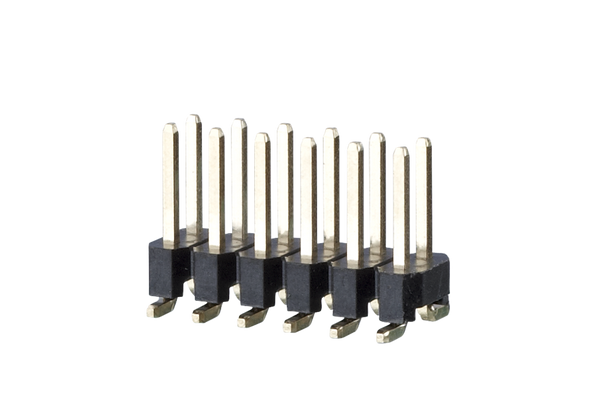

- pin header, SMT solderable
- centerline 2.54 mm, direction of connection vertical 0°
- color black
- Tape & Reel packaging possible
- dual rows
Resources
| PM202xxVBDN | PM202XXVBDN | View DataSheet |
|---|
| PM202xxVBDN | PM202XXVBDN | View DataSheet |
|---|
| min. number of poles: | 2 |
|---|---|
| max. number of poles: | 40 |
| insulating material: | PE-HT |
|---|---|
| contact material: | CuZnPb |
| Glow-Wire Flammability GWFI: | - |
| Glow-Wire Flammability GWIT: | - |
| Contact surface: | Ni + Au |
| contact pin material: | CuZn |
| contact pin surface: | Ni + Au Flash |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
