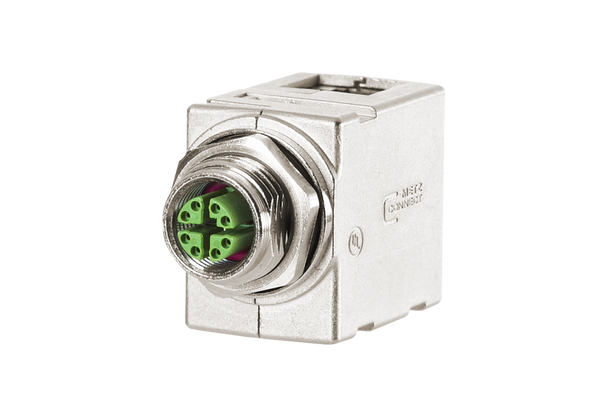

| Panel feed through adapters M12 X-coded to RJ45 for electrical cabinets - angled | MWN911A415 | View DataSheet |
|---|
| Electromagnetic measurement according to MICE: | E2 |
|---|---|
| Design: | Jack |
| Mounting style: | back side |
| Shielding: | shielded |
| Transmission technology: | Copper |
| Color: | metallike |
| Dimension [Length] (mm): | 46.35 mm |
| Dimension [Width] (mm): | 21.6 mm |
| Dimension [Height] (mm]: | 29 mm |
| Dimension [Length] (inch): | 1.825 in. |
| Dimension [Width] (inch): | 0.85 in. |
| Dimension [Height] (inch): | 1.142 in. |
| Labeling option: | on housing |
| Category (ISO): | 6A |
|---|---|
| Category (TIA): | 6A |
| Transmission rate up to 10 GBit: | IEEE 802.3an |
| Connector technology interface 1: | RJ45-jack |
|---|---|
| Connector technology interface 2: | M12-jack |
| Coding interface 2: | X-coded |
| Number of ports interface 2: | 1 |
| Number of ports interface 2 equipped: | 1 |
| Number of positions/contacts interface 1: | 8P/8C |
| Number of positions/contacts interface 2: | 8 |
| Cable access/outlet: | angled M12 |
| Current carrying capacity: | 0.5 A |
|---|---|
| Rated voltage: | 50 V AC / 60 V DC |
| Insulation resistance: | min. 100 MOhm |
| Material - Housing: | GD-Zn (zinc die-cast) |
|---|---|
| Halogen free: | yes |
| Material - Finish: | Ni (nickel) |
| RoHS: | compliant |
| Temperature - Storage °C [min.]: | -25 °C |
|---|---|
| Temperature - Storage °C [max.]: | 85 °C |
| Temperature - Storage °F [min.]: | -13 °F |
| Temperature - Storage °F [max.]: | 185 °F |
| Temperature - Operating °C [min.]: | -25 °C |
| Temperature - Operating °C [max.]: | 85 °C |
| Temperature - Operating °F [min.]: | -13 °F |
| Temperature - Operating °F [max.]: | 185 °F |
| Particulate ingress interface 1: | IP2X |
| Liquid ingress/immersion interface 1: | IPX0 |
| Particulate ingress interface 2: | IP6X when plugged in |
| Liquid ingress/immersion interface 2: | IPX7 when plugged in |
| Overvoltage category [1]: | II |
| Degree of pollution [1]: | 2 |
