Description

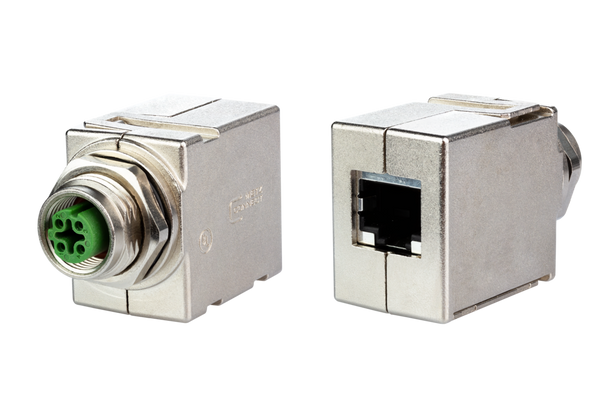

- panel feed-through adapter M12 to RJ45 for control cabinets
- M12 jack D-coded, IP67, per IEC/PS 61076-2-101
- RJ45 jack, IP20, per IEC 60603-7-51
- for 100 MBit Fast Ethernet (IEEE 802.3an)
- Cat.5
- plug-in direction: straight
- solid zinc die-cast housing, nickel-plated
- suitable for applications in the railway industry according to data sheet
Resources
| Panel feed through adapters M12 D-coded to RJ45 for electrical cabinets - straight | MWN811A115 | View DataSheet |
|---|
Specifications
| Design: | Jack |
|---|---|
| Mounting style: | back side |
| Shielding: | shielded |
| Transmission technology: | Copper |
| Color: | metallike |
| Dimension [Length] (mm): | 46.35 mm |
| Dimension [Width] (mm): | 21.6 mm |
| Dimension [Height] (mm]: | 29 mm |
| Dimension [Length] (inch): | 1.825 in. |
| Dimension [Width] (inch): | 0.85 in. |
| Dimension [Height] (inch): | 1.142 in. |
| Labeling option: | on housing |
| Category (ISO): | 5 |
|---|---|
| Category (TIA): | 5 |
| Connector technology interface 1: | RJ45-jack |
|---|---|
| Connector technology interface 2: | M12-jack |
| Coding interface 2: | D-coded |
| Number of ports interface 2: | 1 |
| Number of ports interface 2 equipped: | 1 |
| Number of positions/contacts interface 1: | 8P/4C |
| Number of positions/contacts interface 2: | 4 |
| Current carrying capacity: | 0.5 A |
|---|---|
| Rated voltage: | 60 V DC |
| Material - Housing: | GD-Zn (zinc die-cast) |
|---|---|
| Halogen free: | yes |
| RoHS: | compliant |
| Particulate ingress interface 1: | IP2X |
|---|---|
| Liquid ingress/immersion interface 1: | IPX0 |
| Particulate ingress interface 2: | IP6X when plugged in |
| Liquid ingress/immersion interface 2: | IPX7 when plugged in |
| Degree of pollution [1]: | 2 |
