Description

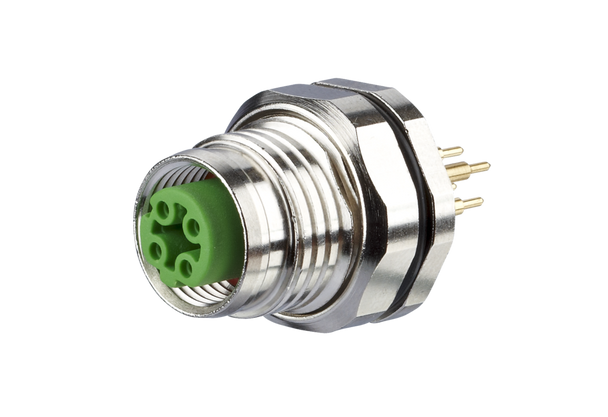

- PC board jack M12
- 4-pole, D-coded according to IEC 61076-02-101
- THR solderable
- through hole mounting
- Contact carriers green
- IP67 when plugged in
- suitable for applications in the railway industry
Resources
| PC board jack M12, D-coded, 4-pole, IP67, through hole mounting | MMW370A1A1 | View DataSheet |
|---|
Specifications
| Dimension [Diameter] (mm): | Ø 20 mm |
|---|---|
| Dimension [Height] (mm]: | 33.8 mm |
| Dimension [Diameter] (inch): | 0.787 in. |
| Dimension [Height] (inch): | 1.331 in. |
| ports: | Single port |
| Coding: | D-coded |
| Rated voltage: | 250 V |
|---|---|
| Current carrying capacity at 40 °C: | 4 A |
| Insulation resistance: | min. 100 MOhm |
| Material - Housing: | CuZnPb |
|---|---|
| Material - Contact: | CuZnPb |
| Contact surface: | Ni + Au |
| Shield material: | CuSn |
| Material - Insulating body: | PA UL94 V0 |
| Color: | metallike |
| Life - Number of mating cycles: | >= 100 |
| Temperature - Operating °C [min.]: | -30 °C |
|---|---|
| Temperature - Operating °C [max.]: | 90 °C |
| Temperature - Operating °F [min.]: | -22 °F |
| Temperature - Operating °F [max.]: | 194 °F |
