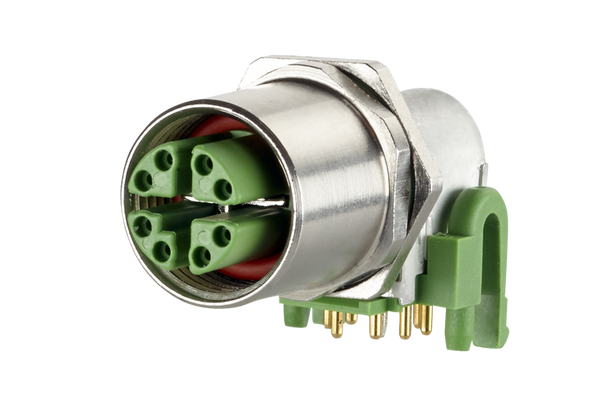

Metz Connect MMT471A315-0001. PC board jack M12, X-coded, 8-pole, IP67, 90° angled, max. 4 mm wall thickness

No reviews yet Write a Review
$0.00
Metz Connect MMT471A315-0001 PC board jack M12, X-coded, 8-pole, IP67, 90° angled, max. 4 mm wall thickness | American Cable Assemblies
Metz Connect MMT471A315-0001. PC board jack M12, X-coded, 8-pole, IP67, 90° angled, max. 4 mm wall thickness
Metz Connect MMT471A315-0001. PC board jack M12, X-coded, 8-pole, IP67, 90° angled, max. 4 mm wall thickness
Metz Connect MMT471A315-0001. PC board jack M12, X-coded, 8-pole, IP67, 90° angled, max. 4 mm wall thickness
SKU:
MTZMMT471A315-0001
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Coding:
X-coded
Pole size:
8
RoHS:
compliant
EAN:
4250184169482

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • PC board jack M12
  • 8-pole, X-coded according to IEC 61076-2-109
  • 90° angled
  • 10 GBit suitable according to IEEE 802.3an
  • THR solderable
  • Side entry
  • Contact carriers green
  • IP67 when plugged in
  • suitable for a wall thickness up to 4 mm
  • suitable for applications in the railway industry according to data sheet

Resources

PC board jack M12, X-coded, 8-pole, IP67, 90° angled, max. 4 mm wall thickness | MMT471A315-0001View DataSheet

Specifications

General Data
Dimension [Height] (mm]: 18.95 mm
Dimension [Diameter] (inch): 0.0
Dimension [Height] (inch): 0.746 in.
Coding: X-coded
Electrical characteristics
Rated voltage: 50 V AC / 60 V DC
Insulation resistance: min. 100 MOhm
Overvoltage category [1]: II
Degree of pollution [1]: 2
Mechanical data
Material - Housing: CuZnPb
Material - Contact: CuZnPb
Contact surface: Ni + Au
Material - Insulating body: PA UL94 V0
Life - Number of mating cycles: >= 100
Tightening torque - Plug: 0,6 - 1 Nm
Tightening torque - Jack mounting: 3 Nm +/- 0,5 Nm
Protection category: IP67 when plugged in
Klimatische Eigenschaften
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 85 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 185 °F
