Metz Connect

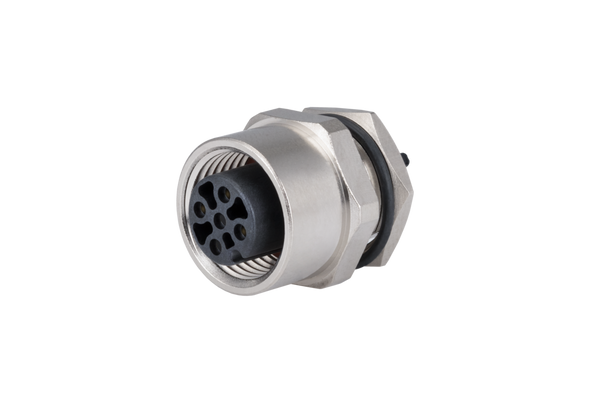

Metz Connect MMT361A715. PC board jack M12, A-coded, 4-pole, IP67

No reviews yet Write a Review
$0.00
Metz Connect MMT361A715 PC board jack M12, A-coded, 4-pole, IP67 | American Cable Assemblies
Metz Connect MMT361A715. PC board jack M12, A-coded, 4-pole, IP67
Metz Connect MMT361A715. PC board jack M12, A-coded, 4-pole, IP67
SKU:
MTZMMT361A715
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Coding:
A-coded
Pole size:
4
RoHS:
compliant
EAN:
4251394631950

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • PC board jack M12
  • Front wall mounting
  • 4-pole, A-coded according to IEC 61076-2-101
  • THR solderable
  • Top entry
  • Contact carriers black
  • IP67 when plugged in
  • suitable for applications in the railway industry according to data sheet

Resources

PC board jack M12, A-coded, 4-pole, IP67 | MMT361A715View DataSheet

Specifications

General Data
Dimension [Diameter] (mm): Ø 16.5 mm
Dimension [Height] (mm]: 20.5 mm
Dimension [Diameter] (inch): 0.65 in.
Dimension [Height] (inch): 0.807 in.
ports: Single port
Solderability: Acc. to IPC/JEDEC J-STD-020E-MSL 1
Coding: A-coded
Electrical characteristics
Rated voltage: 250 V
Current carrying capacity at 40 °C: 4 A
Insulation resistance: min. 100 MOhm
Overvoltage category [1]: II
Degree of pollution [1]: 2
Mechanical data
Material - Housing: CuZnPb
Material - Contact: CuZnPb
Contact surface: Ni + Au
Material - Insulating body: LCP UL94 V0
Color: black
RoHS: compliant
Life - Number of mating cycles: >= 100
Tightening torque - Plug: 0,6 - 1 Nm
Tightening torque - Jack mounting: 3 Nm +/- 0,5 Nm
Protection category: IP67 when plugged in
Klimatische Eigenschaften
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 85 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 185 °F
