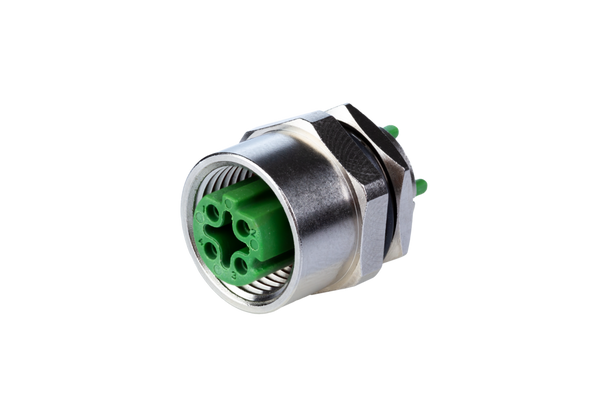

| PC board jack M12, D-coded, 4-pole, IP67 | MMT361A115 | View DataSheet |
|---|
| Dimension [Diameter] (mm): | Ø 16.5 mm |
|---|---|
| Dimension [Height] (mm]: | 20.5 mm |
| Dimension [Diameter] (inch): | 0.65 in. |
| Dimension [Height] (inch): | 0.807 in. |
| ports: | Single port |
| Coding: | D-coded |
| Rated voltage: | 250 V |
|---|---|
| Current carrying capacity at 40 °C: | 4 A |
| Insulation resistance: | min. 100 MOhm |
| Overvoltage category [1]: | II |
| Degree of pollution [1]: | 2 |
| Material - Housing: | CuZnPb |
|---|---|
| Material - Contact: | CuZnPb |
| Contact surface: | Ni + Au |
| Shield material: | CuSn |
| Material - Insulating body: | PA UL94 V0 |
| Color: | metallike |
| Life - Number of mating cycles: | >= 100 |
| Tightening torque - Plug: | 0,6 - 1 Nm |
| Tightening torque - Jack mounting: | 3 Nm +/- 0,5 Nm |
| Protection category: | IP67 when plugged in |
| Temperature - Operating °C [min.]: | -40 °C |
|---|---|
| Temperature - Operating °C [max.]: | 85 °C |
| Temperature - Operating °F [min.]: | -40 °F |
| Temperature - Operating °F [max.]: | 185 °F |
