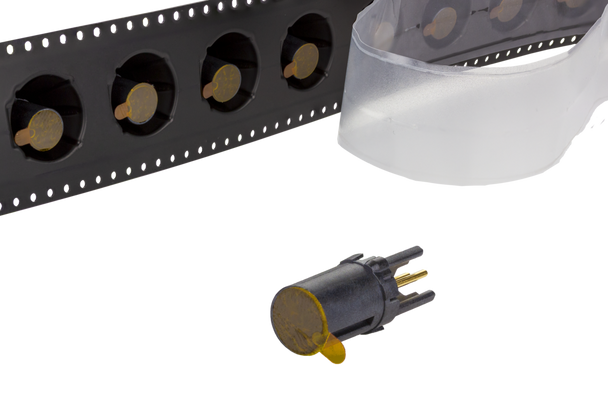

Metz Connect MMT060A915-G201. PC board insert M12, A-coded, 2-pole, black, Tape & Reel

No reviews yet Write a Review
$0.00
Metz Connect MMT060A915-G201 PC board insert M12, A-coded, 2-pole, black, Tape & Reel | American Cable Assemblies
Metz Connect MMT060A915-G201. PC board insert M12, A-coded, 2-pole, black, Tape & Reel
Metz Connect MMT060A915-G201. PC board insert M12, A-coded, 2-pole, black, Tape & Reel
SKU:
MTZMMT060A915-G201
UPC:
4.25E+12
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Coding:
A-coded
Pole size:
2
RoHS:
compliant
EAN:
4251394631929

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • PC board insert M12
  • 2-pole, A-coded according to IEC 61076-2-101
  • THR solderable
  • Top entry
  • Contact carriers black
  • Tape & Reel packaging
  • suitable for applications in the railway industry according to data sheet

Resources

PC board insert M12, A-coded, 2-pole, black, Tape & Reel | MMT060A915-G201View DataSheet

Specifications

General Data
Dimension [Diameter] (mm): Ø 9.2 mm
Dimension [Height] (mm]: 20.5 mm
Dimension [Diameter] (inch): 0.362 in.
Dimension [Height] (inch): 0.807 in.
ports: Single port
Solderability: Acc. to IPC/JEDEC J-STD-020E-MSL 1
Coding: A-coded
Electrical characteristics
Rated voltage: 250 V
Current carrying capacity at 40 °C: 4 A
Insulation resistance: min. 100 MOhm
Overvoltage category [1]: II
Degree of pollution [1]: 2
Mechanical data
Material - Contact: CuZnPb
Contact surface: Ni + Au
Material - Insulating body: LCP UL94 V0
Color: black
RoHS: pending
Life - Number of mating cycles: >= 100
Klimatische Eigenschaften
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 85 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 185 °F
