Description

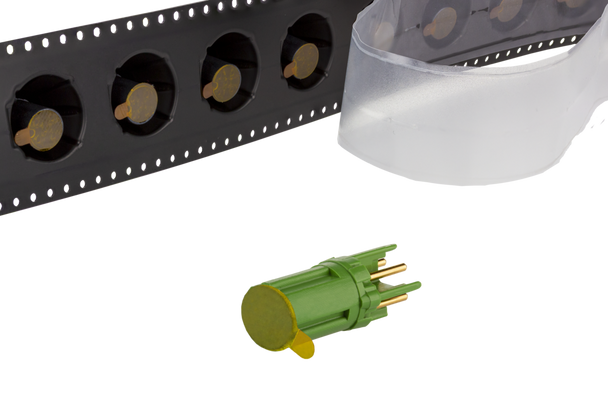

- PC board insert M12
- Cat.5
- 4-pole, D-coded
- suitable for 10/100 MBit
- THR solderable
- Top entry
- Contact carriers green
- Tape & Reel packaging
- suitable for applications in the railway industry according to data sheet
Resources
| PC board insert M12, D-coded, 4-pole, green, Tape & Reel | MMT060A115-G2 | View DataSheet |
|---|
Specifications
| Dimension [Diameter] (mm): | Ø 9.2 mm |
|---|---|
| Dimension [Height] (mm]: | 20.5 mm |
| Dimension [Diameter] (inch): | 0.362 in. |
| Dimension [Height] (inch): | 0.807 in. |
| ports: | Single port |
| Coding: | D-coded |
| Rated voltage: | 250 V |
|---|---|
| Current carrying capacity at 40 °C: | 4 A |
| Insulation resistance: | min. 100 MOhm |
| Overvoltage category [1]: | II |
| Degree of pollution [1]: | 2 |
| Material - Contact: | CuZnPb |
|---|---|
| Contact surface: | Ni + Au |
| Material - Insulating body: | PA UL94 V0 |
| Color: | green |
| Life - Number of mating cycles: | >= 100 |
| Temperature - Operating °C [min.]: | -40 °C |
|---|---|
| Temperature - Operating °C [max.]: | 85 °C |
| Temperature - Operating °F [min.]: | -40 °F |
| Temperature - Operating °F [max.]: | 185 °F |
