Metz Connect MMF881A315. M12 Jack X-coded IP67, field assembly

No reviews yet Write a Review
$68.58
Metz Connect MMF881A315 M12 Jack X-coded IP67, field assembly | American Cable Assemblies
Metz Connect MMF881A315. M12 Jack X-coded IP67, field assembly
Metz Connect MMF881A315. M12 Jack X-coded IP67, field assembly
SKU:
MTZMMF881A315
UPC:
4.25E+12
Minimum Purchase:
10 units
Current Stock:
Design:
Jack
RoHS:
compliant
EAN:
4250184171089
Step:
10
$68.58

Frequently Bought Together:

Metz Connect MMF881A315 M12 Jack X-coded IP67, field assembly | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

  • 8-pole M12 jack for field assembly Cat.6A
  • per IEC 61076-2-109
  • suitable for 10 GBit as per IEEE 802.3an
  • AWG 26/1 - 22/1, AWG 26/7 - 22/7 can be connected
  • solid copper wire diameter 0.4 to 0.64 mm
  • stranded copper wire diameter 0.48 to 0.76 mm
  • wire diameter with isolation up to 1.6 mm
  • overall cable diameter from 6.0 to 9.7 mm
  • jack consists of only two parts
  • easy assembly without special tools
  • industry-compatible zinc die-cast housing
  • suitable for applications in the railway industry according to data sheet

Resources

M12 Jack X-coded IP67, field assembly | MMF881A315 View DataSheet

Specifications

General Data
Electromagnetic measurement according to MICE: E2
Design: Jack
Shielding: shielded
Transmission technology: Copper
Dimension [Length] (mm): 49 mm
Dimension [Width] (mm): 16.8 mm
Dimension [Height] (mm]: 16.8 mm
Dimension [Length] (inch): 1.929 in.
Dimension [Width] (inch): 0.661 in.
Dimension [Height] (inch): 0.661 in.
Field assembly ability: yes
Labeling option: on housing
Transmission characteristics
Category (ISO): 6A
Category (TIA): 6A
Remote Powering: yes
PoE: IEEE 802.3af
PoE plus: IEEE 802.3at
UPoE: yes
Transmission rate up to 10 GBit: IEEE 802.3an

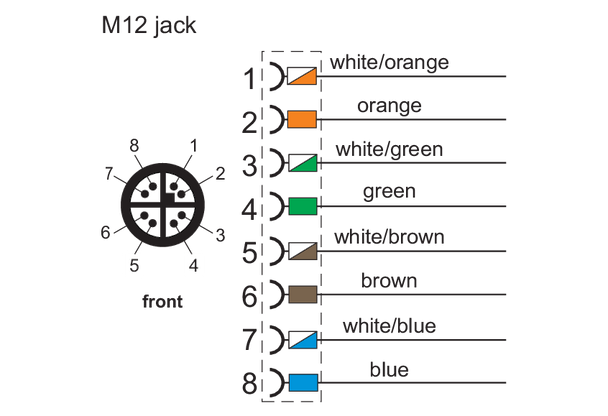

Connections/interfaces
Connector technology interface 1: IDC-connection
Connector technology interface 2: M12-jack
Coding interface 2: X-coded
Number of ports interface 2: 1
Number of ports interface 2 equipped: 1
Number of positions/contacts interface 1: 8
Number of positions/contacts interface 2: 8
Conductor cross section solid wire [AWG] min-max: AWG 26/1 - AWG 22/1
Conductor cross section solid wire [mm²] min-max: 0,128 - 0,324 mm²
Conductor diameter solid wire [mm] min-max: 0,409 - 0,643 mm
Conductor diameter solid wire [inch] min-max: 0,016 - 0,025 in.
Conductor cross section stranded wire [AWG] min-max: AWG 26/7 - AWG 22/7
Conductor cross section stranded wire [mm²] min-max: 0,141 - 0,355 mm²
Conductor diameter stranded wire [mm] min-max: 0,483 - 0,762 mm
Conductor diameter stranded wire [inch] min-max: 0,019 - 0,03 in.
Core diameter (conductor with insulation) [mm min.]: 0.85 mm
Core diameter (conductor with insulation) [mm max.]: 1.6 mm
Core diameter (conductor with insulation) [inch min.]: 0.033 in.
Core diameter (conductor with insulation) [inch max.]: 0.063 in.
Cable sheath diameter [mm min.]: 6 mm
Cable sheath diameter [mm max.]: 9.70
Cable sheath diameter [inch min.]: 0.236 in.
Cable sheath diameter [inch max.]: 0.382
Cable access/outlet: straight M12
Electrical characteristics
Current carrying capacity: 0.5 A
Rated voltage: 50 V AC / 60 V DC
Through resistance: max. 5 mOhm
Insulation resistance: min. 100 MOhm
Mechanical data
Mounting method: screwable
Insertion and withdrawal force: max. 30 N
Life - Number of mating cycles: min. 100
Materials and material properties
Material - Housing: GD-Zn (zinc die-cast)
Material - Contact: CuZnPb (brass)
Material - Contact finish: Ni + Au (nickel-gold)
Material - Shield: CuSn (tin bronze)
Material - Shield finish: Sn (tin)
Material - Stuffer cap: PA UL94-V0
Halogen free: yes
Material - Finish: Ni (nickel)
RoHS: compliant
Environmental conditions
Temperature - Storage °C [min.]: -40 °C
Temperature - Storage °C [max.]: 85 °C
Temperature - Storage °F [min.]: -40 °F
Temperature - Storage °F [max.]: 185 °F
Temperature - Operating °C [min.]: -40 °C
Temperature - Operating °C [max.]: 85 °C
Temperature - Operating °F [min.]: -40 °F
Temperature - Operating °F [max.]: 185 °F
Particulate ingress interface 2: IP6X when plugged in
Liquid ingress/immersion interface 2: IPX5 when plugged in, IPX7 when plugged in
Overvoltage category [1]: III
Degree of pollution [1]: 2
Shock: 490 m/s²
