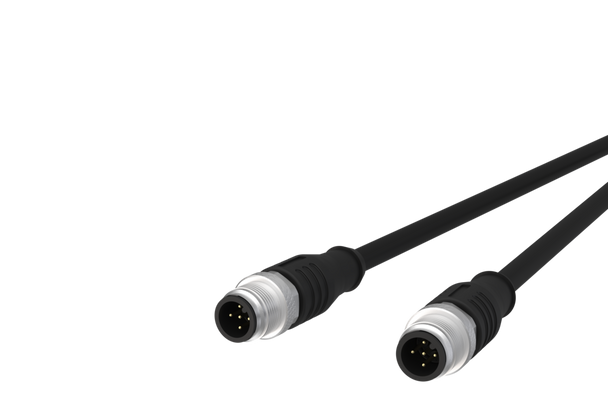

Metz Connect. M12 Sensor/actuator cable, A-coded, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-C

No reviews yet Write a Review
$0.00
Metz Connect M12 Sensor/actuator cable, A-coded, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-C | American Cable Assemblies
Metz Connect. M12 Sensor/actuator cable, A-coded, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-C
Metz Connect. M12 Sensor/actuator cable, A-coded, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-C
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Connection line/cable:
Connection line
Cable types:
AWG 22/42 PUR
Interface 1:
M12-plug
Interface 2:
M12-plug
Number of poles:
5-pole
Shielding:
shielded
Cable structure:
PUR
Conductor cross section, stranded wire:
AWG 22/42
RoHS:
compliant
$0.00

Frequently Bought Together:

Metz Connect M12 Sensor/actuator cable, A-coded, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-C | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag-chain application is possible at a bending radius of minimum 10xd. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine tools and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain resistant, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant

  • Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
  • Other cable lengths on request.

Resources

M12 Sensor/actuator cable, A-coded, 1.0 m, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-CView DataSheet
M12 Sensor/actuator cable, A-coded, 2.0 m, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-CView DataSheet
M12 Sensor/actuator cable, A-coded, 5.0 m, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-CView DataSheet
M12 Sensor/actuator cable, A-coded, 10.0 m, M12 plug straight - M12 plug straight, shielded, 5-pole, PUR-CView DataSheet

Specifications

General Data
Fields of application:
  • Industrial Ethernet
Design: Sensor/actuator connection line M12, A-coded
Shielding: shielded
Transmission technology: Copper

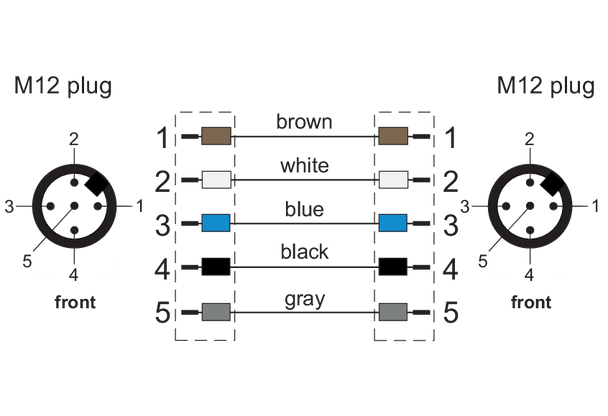

Color coding fiber/ wire(s): brown, white, blue, black, gray
Color: black
Labeling option: identification label carrier
Connections/interfaces
Connector technology interface 1: M12-plug
Connector technology interface 2: M12-plug
Number of positions/contacts interface 1: 5
Number of positions/contacts interface 2: 5
Coding interface 1: A-coded
Coding interface 2: A-coded
Conductor cross section, stranded wire [AWG max.]: AWG 22/42
Cable sheath diameter [mm min.]: 5.6 mm
Cable sheath diameter [inch min.]: 0.22 in.
Electrical characteristics
Current carrying capacity: 4 A at 40 °C
Rated voltage: 60 V
Insulation resistance: min. 100 MOhm
Mechanical data
Life - Number of mating cycles: min. 100
Maximum operating bending radius [mm]: 67.2 mm
Alternating bending radius: 67 mm
acceleration: 5 m/s²
Materials and material properties
Material - Conductor: Cu (copper)
Material - Conductor Insulation: polypropylene
Material - Cable jacket: PUR
Material - Body interface 1: Plastics
Material - Body interface 2: Plastics
Material - Contact interface 1: CuSn (tin bronze)
Material - Contact interface 2: CuSn (tin bronze)
Material - Contact finish interface 1: Au (gold)
Material - Contact finish interface 2: Au (gold)
Material - Contact carriers interface 1: Plastics
Material - Contact carriers interface 2: Plastics
Material - Union nut interface 1: CuZnPb (brass)
Material - Union nut interface 2: CuZnPb (brass)
Material - Union nut finish interface 1: Ni (nickel)
Material - Union nut finish interface 2: Ni (nickel)
Flame retardancy: yes
Halogen free: yes
Oil resistance: yes
UV-resistance: yes
drag chain suitable: yes
torsional: yes
RoHS: compliant
