Flexible, silicone- and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag-chain application is possible at a bending radius of minimum 10xd. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine tools and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements. Special features: flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain resistant, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant
- Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
- Other cable lengths on request.
Resources

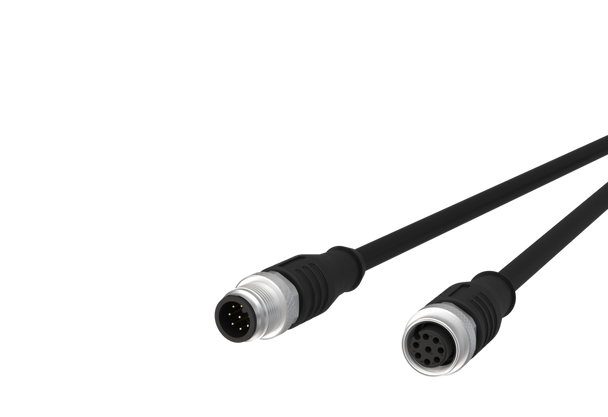

| M12 Sensor/actuator cable, A-coded, 1.0 m, M12 plug straight - M12 jack straight, shielded, 8-pole, PUR-C | View DataSheet |
|---|
| M12 Sensor/actuator cable, A-coded, 2.0 m, M12 plug straight - M12 jack straight, shielded, 8-pole, PUR-C | View DataSheet |
|---|
| M12 Sensor/actuator cable, A-coded, 5.0 m, M12 plug straight - M12 jack straight, shielded, 8-pole, PUR-C | View DataSheet |
|---|
| M12 Sensor/actuator cable, A-coded, 10.0 m, M12 plug straight - M12 jack straight, shielded, 8-pole, PUR-C | View DataSheet |
|---|
Specifications
General Data | Fields of application: | |
| Design: | Sensor/actuator connection line M12, A-coded |
| Shielding: | shielded |
| Transmission technology: | Copper |
| Color coding fiber/ wire(s): | white, brown, green, yellow, gray, pink, blue, red |
| Color: | black |
| Labeling option: | identification label carrier |
Connections/interfaces | Connector technology interface 1: | M12-plug |
| Connector technology interface 2: | M12-jack |
| Number of positions/contacts interface 1: | 8 |
| Number of positions/contacts interface 2: | 8 |
| Coding interface 1: | A-coded |
| Coding interface 2: | A-coded |
| Conductor cross section, stranded wire [AWG max.]: | AWG 24/32 |
| Cable sheath diameter [mm min.]: | 6.3 mm |
| Cable sheath diameter [inch min.]: | 0.248 in. |
Electrical characteristics | Current carrying capacity: | 2 A at 40 °C |
| Rated voltage: | 30 V |
| Insulation resistance: | min. 100 MOhm |
Mechanical data | Life - Number of mating cycles: | min. 100 |
| Maximum operating bending radius [mm]: | 75.6 mm |
| Alternating bending radius: | 75 mm |
| acceleration: | 5 m/s² |
Materials and material properties | Material - Conductor: | Cu (copper) |
| Material - Conductor Insulation: | polypropylene |
| Material - Cable jacket: | PUR |
| Material - Body interface 1: | Plastics |
| Material - Body interface 2: | Plastics |
| Material - Contact interface 1: | CuSn (tin bronze) |
| Material - Contact interface 2: | CuSn (tin bronze) |
| Material - Contact finish interface 1: | Au (gold) |
| Material - Contact finish interface 2: | Au (gold) |
| Material - Contact carriers interface 1: | Plastics |
| Material - Contact carriers interface 2: | Plastics |
| Material - Union nut interface 1: | CuZnPb (brass) |
| Material - Union nut interface 2: | CuZnPb (brass) |
| Material - Union nut finish interface 1: | Ni (nickel) |
| Material - Union nut finish interface 2: | Ni (nickel) |
| Flame retardancy: | yes |
| Halogen free: | yes |
| Oil resistance: | yes |
| UV-resistance: | yes |
| drag chain suitable: | yes |
| torsional: | yes |
| RoHS: | compliant |
