In Stock
Metz Connect

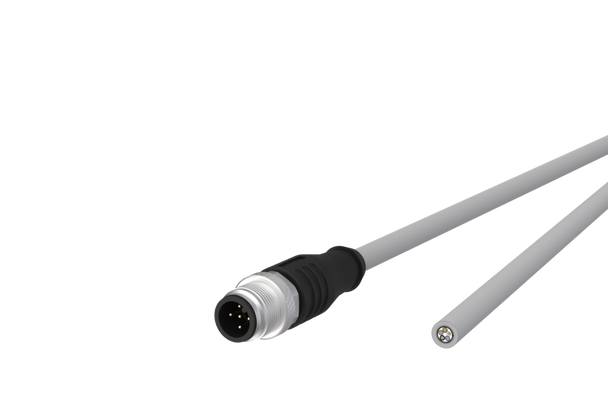

Metz Connect. M12 Sensor/actuator cable, A-coded, M12 plug straight - free line end, shielded, 5-pole, PVC-C

No reviews yet Write a Review
$0.00
Metz Connect M12 Sensor/actuator cable, A-coded, M12 plug straight - free line end, shielded, 5-pole, PVC-C | American Cable Assemblies
Metz Connect. M12 Sensor/actuator cable, A-coded, M12 plug straight - free line end, shielded, 5-pole, PVC-C
Metz Connect. M12 Sensor/actuator cable, A-coded, M12 plug straight - free line end, shielded, 5-pole, PVC-C
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Connection line/cable:
Connection cable
Cable types:
AWG 22/19 PVC
Interface 1:
M12-plug
Interface 2:
free line end
Number of poles:
5-pole
Shielding:
shielded
Cable structure:
PVC
Conductor cross section, stranded wire:
AWG 22/19
RoHS:
compliant
$0.00

Frequently Bought Together:

Metz Connect M12 Sensor/actuator cable, A-coded, M12 plug straight - free line end, shielded, 5-pole, PVC-C | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

PVC-cable for measurement, control and sensor technology. Suitable for applications in dry areas on packaging machines, assembly and conveyor technology. High flexibility with unstressed movement (conditional drag chain application possible). Predestined for applications in food and beverage industry. Special features: seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, ozone resistant, UV resistant.

  • Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
  • Other cable lengths on request.

Resources

M12 Sensor/actuator cable, A-coded, 1.0 m, M12 plug straight - free line end, shielded, 5-pole, PVC-CView DataSheet
M12 Sensor/actuator cable, A-coded, 2.0 m, M12 plug straight - free line end, shielded, 5-pole, PVC-CView DataSheet
M12 Sensor/actuator cable, A-coded, 5.0 m, M12 plug straight - free line end, shielded, 5-pole, PVC-CView DataSheet
M12 Sensor/actuator cable, A-coded, 10.0 m, M12 plug straight - free line end, shielded, 5-pole, PVC-CView DataSheet

Specifications

General Data
Fields of application:
  • Industrial Ethernet
Design: Sensor/actuator connection cable M12, A-coded
Shielding: shielded
Transmission technology: Copper

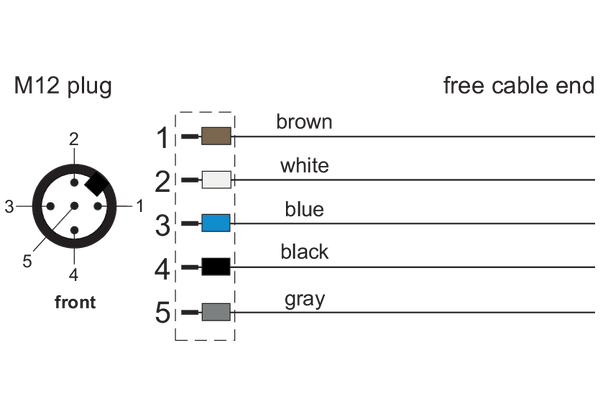

Color coding fiber/ wire(s): brown, white, blue, black, gray
Color: gray
Labeling option: identification label carrier
Connections/interfaces
Connector technology interface 1: M12-plug
Connector technology interface 2: free line end
Number of positions/contacts interface 1: 5
Coding interface 1: A-coded
Conductor cross section, stranded wire [AWG max.]: AWG 22/19
Cable sheath diameter [mm min.]: 5.5 mm
Cable sheath diameter [inch min.]: 0.216 in.
Electrical characteristics
Current carrying capacity: 4 A at 40 °C
Rated voltage: 60 V
Insulation resistance: min. 100 MOhm
Mechanical data
Life - Number of mating cycles: min. 100
Maximum operating bending radius [mm]: 55 mm
Alternating bending radius: 55 mm
Materials and material properties
Material - Conductor: Cu (copper)
Material - Conductor Insulation: PVC
Material - Cable jacket: PVC
Material - Body interface 1: Plastics
Material - Contact interface 1: CuSn (tin bronze)
Material - Contact finish interface 1: Au (gold)
Material - Contact carriers interface 1: Plastics
Material - Union nut interface 1: CuZnPb (brass)
Material - Union nut finish interface 1: Ni (nickel)
UV-resistance: yes
RoHS: compliant
