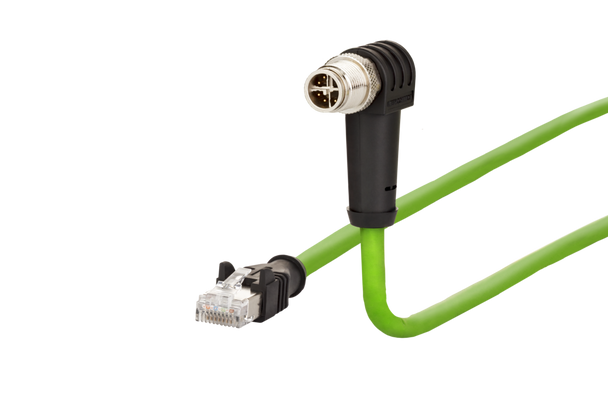

Metz Connect. M12 Industrial Ethernet cable, X-coded, RJ45 plug straight - M12 plug angled, coding at 225°, PUR

No reviews yet Write a Review
$0.00
Metz Connect M12 Industrial Ethernet cable, X-coded, RJ45 plug straight - M12 plug angled, coding at 225°, PUR | American Cable Assemblies
Metz Connect. M12 Industrial Ethernet cable, X-coded, RJ45 plug straight - M12 plug angled, coding at 225°, PUR
Metz Connect. M12 Industrial Ethernet cable, X-coded, RJ45 plug straight - M12 plug angled, coding at 225°, PUR
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Connection line/cable:
Connection line
Cable types:
AWG 26/7 PUR 6A
Interface 1:
RJ45 plug
Interface 2:
M12-plug angled
Cable structure:
PUR
Conductor cross section, stranded wire:
AWG 26/7
Category:
6A
RoHS:
compliant
$0.00

Frequently Bought Together:

Metz Connect M12 Industrial Ethernet cable, X-coded, RJ45 plug straight - M12 plug angled, coding at 225°, PUR | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Shielded PUR cable for safe and industrial data transmission in automation and fieldbus technology. The cable meets the requirements of ULStyle 20963 and complies with Cat7 (electrical properties based on EN50288-4-2). Materials and design allow increased mechanical stress (abrasion, bending, vibration, etc.) of the cable. Special properties: UL style 20963, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, UV resistant, hydrolysis resistant, halogen free, oil resistant, high flexibility, no corrosive gases, microbe resistant, no fire propagation.

  • Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
  • Other cable lengths on request.

Resources

M12 Industrial Ethernet cable, X-coded, 1.0 m, RJ45 plug straight - M12 plug angled, coding at 225°, PURView DataSheet
M12 Industrial Ethernet cable, X-coded, 2.0 m, RJ45 plug straight - M12 plug angled, coding at 225°, PURView DataSheet
M12 Industrial Ethernet cable, X-coded, 5.0 m, RJ45 plug straight - M12 plug angled, coding at 225°, PURView DataSheet
M12 Industrial Ethernet cable, X-coded, 10.0 m, RJ45 plug straight - M12 plug angled, coding at 225°, PURView DataSheet

Specifications

General Data
Fields of application:
  • Industrial Ethernet
  • harsh environment
Design: Ethernet-Connection line
Shielding: shielded
Transmission technology: Copper

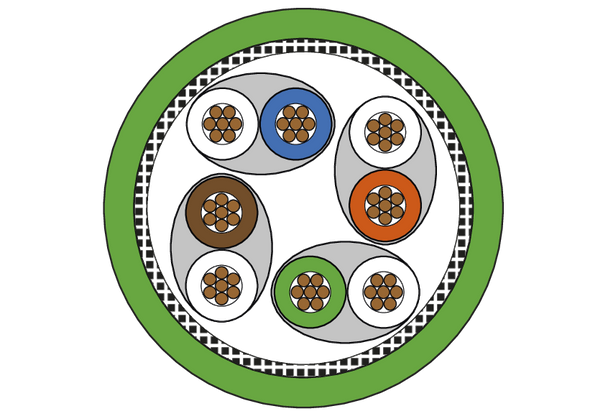

Cable Type: S/FTP
Number of twisting elements: 4
Twisting element: Pair
Wiring: T568B
Color coding fiber/ wire(s): white/orange, orange, white/green, green, white/brown, brown, white/blue, blue
Color: green
Labeling option: identification label carrier
Transmission characteristics
Category (ISO): 6A
Connections/interfaces
Connector technology interface 1: RJ45 plug
Connector technology interface 2: M12-plug angled
Number of positions/contacts interface 1: 8P/8C
Number of positions/contacts interface 2: 8
Coding interface 2: X-coded
Conductor cross section, stranded wire [AWG max.]: AWG 26/7
Conductor diameter, stranded wire (bare copper) [mm max.]: 0.48 mm
Conductor diameter, stranded wire (bare copper) [inch max.]: 0.019 in.
Cable sheath diameter [mm min.]: 6.4 mm
Cable sheath diameter [inch min.]: 0.236 in.
Electrical characteristics
Current carrying capacity: 0.5 A at 40 °C
Insulation resistance: min. 100 MOhm
Mechanical data
Bending radius without load [mm]: min. 64 mm
Maximum operating bending radius [mm]: 64 mm
Maximum operating bending radius [inch]: 2.52 in.
Maximum installation load [mm]: 32 mm
Maximum installation load [inch]: 1.26 in.
Shielding braid coverage: 70 %
Materials and material properties
Material - Conductor: Cu (copper)
Material - Conductor Insulation: Polyethylene
Material - Cable jacket: PUR
Material - Body interface 1: Plastics
Material - Body interface 2: Plastics
Material - Contact interface 1: CuZnPb (brass)
Material - Contact interface 2: CuZnPb (brass)
Material - Contact finish interface 1: Au (gold)
Material - Contact finish interface 2: Au (gold)
Material - Contact carriers interface 1: Plastics
Material - Contact carriers interface 2: Plastics
Material - Union nut interface 2: CuZnPb (brass)
Material - Union nut finish interface 2: Ni (nickel)
Material - Pair shield: plastic film
Material - Pair shield finish: Al (Aluminium)
Material - Main shield: Cu (copper) braid
Material - Main shield finish: Sn (tin)
Flame retardancy: yes
Halogen free: yes
Oil resistance: yes
UV-resistance: yes
RoHS: compliant
Environmental conditions
Temperature - Operating °C [min.]: -30 °C
Temperature - Operating °C [max.]: 70 °C
Temperature - Operating °F [min.]: -22 °F
Temperature - Operating °F [max.]: 158 °F
Particulate ingress interface 1: IP2X when plugged in
Liquid ingress/immersion interface 1: IPX0 when plugged in
Particulate ingress interface 2: IP6X when plugged in
Liquid ingress/immersion interface 2: IPX5, IPX7 when plugged in
Pollution degree interface 1: 1
