Shielded PUR cable for safe and industrial data transmission in automation and fieldbus technology. The cable meets the requirements of ULStyle 20963 and complies with Cat7 (electrical properties based on EN50288-4-2). Materials and design allow increased mechanical stress (abrasion, bending, vibration, etc.) of the cable. Special properties: UL style 20963, seawater resistant, recyclable, LABS free, RoHs compliant, acid and alkali resistant, UV resistant, hydrolysis resistant, halogen free, oil resistant, high flexibility, no corrosive gases, microbe resistant, no fire propagation.
- Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
- Other cable lengths on request.
Resources

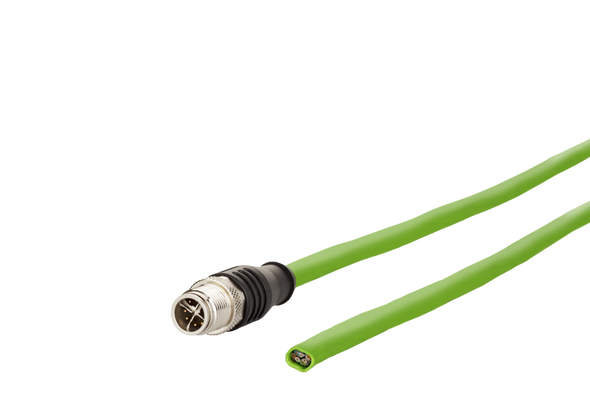

| M12 Industrial Ethernet cable, X-coded, 1.0 m, M12 plug angled - free line end, coding at 225°, PUR |
View DataSheet |
|---|
| M12 Industrial Ethernet cable, X-coded, 2.0 m, M12 plug angled - free line end, coding at 225°, PUR |
View DataSheet |
|---|
| M12 Industrial Ethernet cable, X-coded, 5.0 m, M12 plug angled - free line end, coding at 225°, PUR |
View DataSheet |
|---|
| M12 Industrial Ethernet cable, X-coded, 10.0 m, M12 plug angled - free line end, coding at 225°, PUR |
View DataSheet |
|---|
Specifications
General Data
| Fields of application: |
- Industrial Ethernet
- harsh environment
|
|---|
| Design: |
Ethernet-Connection cable |
|---|
| Shielding: |
shielded |
|---|
| Transmission technology: |
Copper |
|---|
| Cable Type: |
S/FTP |
|---|
| Number of twisting elements: |
4 |
|---|
| Twisting element: |
Pair |
|---|
| Color coding fiber/ wire(s): |
white/orange, orange, white/green, green, white/brown, brown, white/blue, blue |
|---|
| Color: |
green |
|---|
| Labeling option: |
identification label carrier |
|---|
Transmission characteristics
| Category (ISO): |
6A |
|---|
Connections/interfaces
| Connector technology interface 1: |
M12-plug angled |
|---|
| Connector technology interface 2: |
free line end |
|---|
| Number of positions/contacts interface 1: |
8 |
|---|
| Coding interface 1: |
X-coded |
|---|
| Conductor cross section, stranded wire [AWG max.]: |
AWG 26/7 |
|---|
| Conductor diameter, stranded wire (bare copper) [mm max.]: |
0.48 mm |
|---|
| Conductor diameter, stranded wire (bare copper) [inch max.]: |
0.019 in. |
|---|
| Cable sheath diameter [mm min.]: |
6.4 mm |
|---|
| Cable sheath diameter [inch min.]: |
0.236 in. |
|---|
Electrical characteristics
| Current carrying capacity: |
0.5 A at 40 °C |
|---|
| Insulation resistance: |
min. 100 MOhm |
|---|
Mechanical data
| Bending radius without load [mm]: |
min. 64 mm |
|---|
| Maximum operating bending radius [mm]: |
64 mm |
|---|
| Maximum operating bending radius [inch]: |
2.52 in. |
|---|
| Maximum installation load [mm]: |
32 mm |
|---|
| Maximum installation load [inch]: |
1.26 in. |
|---|
| Shielding braid coverage: |
70 % |
|---|
Materials and material properties
| Material - Conductor: |
Cu (copper) |
|---|
| Material - Conductor Insulation: |
Polyethylene |
|---|
| Material - Cable jacket: |
PUR |
|---|
| Material - Body interface 1: |
Plastics |
|---|
| Material - Contact interface 1: |
CuZnPb (brass) |
|---|
| Material - Contact finish interface 1: |
Au (gold) |
|---|
| Material - Contact carriers interface 1: |
Plastics |
|---|
| Material - Union nut interface 1: |
CuZnPb (brass) |
|---|
| Material - Union nut finish interface 1: |
Ni (nickel) |
|---|
| Material - Pair shield: |
plastic film |
|---|
| Material - Pair shield finish: |
Al (Aluminium) |
|---|
| Material - Main shield: |
Cu (copper) braid |
|---|
| Material - Main shield finish: |
Sn (tin) |
|---|
| Flame retardancy: |
yes |
|---|
| Halogen free: |
yes |
|---|
| Oil resistance: |
yes |
|---|
| UV-resistance: |
yes |
|---|
| RoHS: |
compliant |
|---|
Environmental conditions
| Temperature - Operating °C [min.]: |
-30 °C |
|---|
| Temperature - Operating °C [max.]: |
90 °C |
|---|
| Temperature - Operating °F [min.]: |
-22 °F |
|---|
| Temperature - Operating °F [max.]: |
194 °F |
|---|
| Particulate ingress interface 1: |
IP6X when plugged in |
|---|
| Liquid ingress/immersion interface 1: |
IPX5, IPX7 when plugged in |
|---|
| Pollution degree interface 1: |
2 |
|---|
