PROFINET 4x2xAWG24/7 Type C torsion-resistant high-speed data cable of transmission category Cat 7. The cable is halogen-free, flame-retardant, oil-resistant and resistant to abrasion due to the PUR outer jacket. It is ideally suited for use in industrial environments. High-quality shielding ensures high transmission reliability of the data in electromagnetically stressed areas. Suitable for use in dry and humid rooms. Special properties: c(UL)us type CMX according to UL 444, UL AWM styles 11117 and 21576 (1000 V, 80 °C) according to UL 758, flame retardant, recyclable, LABS-free, RoHs compliant, ozone resistant, UV resistant, torsion resistant, halogen free, oil resistant.
- Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
- Other cable lengths on request.
Resources
| M12 Industrial Ethernet cable, X-coded, 1.0 m, M12 jack straight - M12 plug straight, torsion, PUR |
View DataSheet |
|---|
| M12 Industrial Ethernet cable, X-coded, 2.0 m, M12 jack straight - M12 plug straight, torsion, PUR |
View DataSheet |
|---|
| M12 Industrial Ethernet cable, X-coded, 5.0 m, M12 jack straight - M12 plug straight, torsion, PUR |
View DataSheet |
|---|
| M12 Industrial Ethernet cable, X-coded, 10.0 m, M12 jack straight - M12 plug straight, torsion, PUR |
View DataSheet |
|---|
Specifications
General Data
| Fields of application: |
- Industrial Ethernet
- harsh environment
|
|---|
| Design: |
Ethernet-Connection line |
|---|
| Shielding: |
shielded |
|---|
| Transmission technology: |
Copper |
|---|

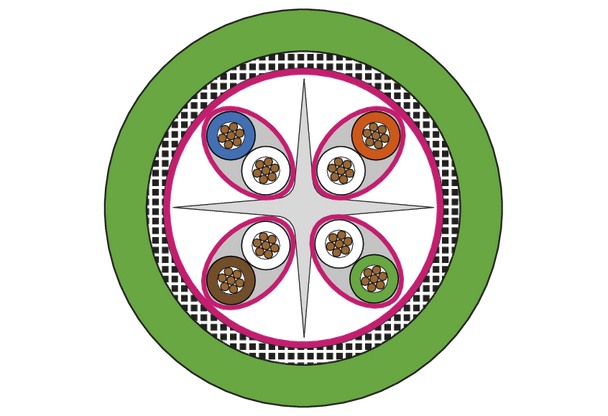

| Cable Type: |
S/FTP |
|---|
| Number of twisting elements: |
4 |
|---|
| Twisting element: |
Pair |
|---|
| Wiring: |
1 - 1 |
|---|
| Color coding fiber/ wire(s): |
white/orange, orange, white/green, green, white/brown, brown, white/blue, blue |
|---|
| Color: |
green |
|---|
Transmission characteristics
| Category (ISO): |
6A |
|---|
Connections/interfaces
| Connector technology interface 1: |
M12-jack |
|---|
| Connector technology interface 2: |
M12-plug |
|---|
| Number of positions/contacts interface 1: |
8 |
|---|
| Number of positions/contacts interface 2: |
8 |
|---|
| Coding interface 1: |
X-coded |
|---|
| Coding interface 2: |
X-coded |
|---|
| Conductor cross section, stranded wire [AWG max.]: |
AWG 24/7 |
|---|
| Conductor diameter, stranded wire (bare copper) [mm max.]: |
0.2 mm |
|---|
| Conductor diameter, stranded wire (bare copper) [inch max.]: |
0.008 in. |
|---|
| Cable sheath diameter [mm min.]: |
9.4 mm |
|---|
| Cable sheath diameter [inch min.]: |
0.37 in. |
|---|
Electrical characteristics
| Current carrying capacity: |
0.5 A at 40 °C |
|---|
| Insulation resistance: |
min. 100 MOhm |
|---|
Mechanical data
| Life - Number of mating cycles: |
min. 100 |
|---|
| Maximum operating bending radius [mm]: |
75 mm |
|---|
| Maximum operating bending radius [inch]: |
2.953 in. |
|---|
| Maximum installation load [mm]: |
141 mm |
|---|
| Maximum installation load [inch]: |
5.551 in. |
|---|
| Shielding braid coverage: |
85 % |
|---|
Materials and material properties
| Material - Conductor: |
Cu (copper) |
|---|
| Material - Conductor Insulation: |
foamed Polyolefin |
|---|
| Material - Cable jacket: |
PUR |
|---|
| Material - Body interface 1: |
Plastics |
|---|
| Material - Body interface 2: |
Plastics |
|---|
| Material - Contact interface 1: |
CuZnPb (brass) |
|---|
| Material - Contact interface 2: |
CuZnPb (brass) |
|---|
| Material - Contact finish interface 1: |
Au (gold) |
|---|
| Material - Contact finish interface 2: |
Au (gold) |
|---|
| Material - Contact carriers interface 1: |
Plastics |
|---|
| Material - Contact carriers interface 2: |
Plastics |
|---|
| Material - Union nut interface 1: |
CuZnPb (brass) |
|---|
| Material - Union nut interface 2: |
CuZnPb (brass) |
|---|
| Material - Union nut finish interface 1: |
Ni (nickel) |
|---|
| Material - Union nut finish interface 2: |
Ni (nickel) |
|---|
| Material - Pair shield: |
plastic film |
|---|
| Material - Pair shield finish: |
Al (Aluminium) |
|---|
| Material - Main shield: |
Cu (copper) braid |
|---|
| Material - Main shield finish: |
Sn (tin) |
|---|
| Flame retardancy: |
according to IEC 60332-1-2 |
|---|
| Halogen free: |
yes |
|---|
| Oil resistance: |
yes |
|---|
| torsional: |
yes |
|---|
| RoHS: |
compliant |
|---|
Environmental conditions
| Temperature - Operating °C [min.]: |
-30 °C |
|---|
| Temperature - Operating °C [max.]: |
90 °C |
|---|
| Temperature - Operating °F [min.]: |
-22 °F |
|---|
| Temperature - Operating °F [max.]: |
194 °F |
|---|
| Particulate ingress interface 1: |
IP6X when plugged in |
|---|
| Liquid ingress/immersion interface 1: |
IPX5, IPX7 when plugged in |
|---|
| Particulate ingress interface 2: |
IP6X when plugged in |
|---|
| Liquid ingress/immersion interface 2: |
IPX5, IPX7 when plugged in |
|---|
| Pollution degree interface 1: |
2 |
|---|
