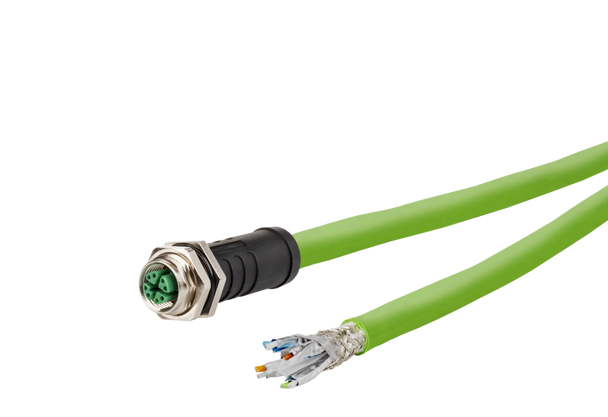

Metz Connect. M12 Industrial Ethernet cable, X-coded, M12 jack straight - free line end, torsion, PUR

No reviews yet Write a Review
$0.00
Metz Connect  M12 Industrial Ethernet cable, X-coded, M12 jack straight - free line end, torsion, PUR | American Cable Assemblies
Metz Connect. M12 Industrial Ethernet cable, X-coded, M12 jack straight - free line end, torsion, PUR
Metz Connect. M12 Industrial Ethernet cable, X-coded, M12 jack straight - free line end, torsion, PUR
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Connection line/cable:
Connection cable
Cable types:
AWG 24/7 PUR 6A
Coding:
X-coded
Interface 1:
M12-jack
Interface 2:
free line end
Cable structure:
PUR
Conductor cross section, stranded wire:
AWG 24/7
Category:
6A
torsional:
yes
RoHS:
compliant
$0.00

Frequently Bought Together:

Metz Connect  M12 Industrial Ethernet cable, X-coded, M12 jack straight - free line end, torsion, PUR | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

PROFINET 4x2xAWG24/7 Type C torsion-resistant high-speed data cable of transmission category Cat 7. The cable is halogen-free, flame-retardant, oil-resistant and resistant to abrasion due to the PUR outer jacket. It is ideally suited for use in industrial environments. High-quality shielding ensures high transmission reliability of the data in electromagnetically stressed areas. Suitable for use in dry and humid rooms. Special properties: c(UL)us type CMX according to UL 444, UL AWM styles 11117 and 21576 (1000 V, 80 °C) according to UL 758, flame retardant, recyclable, LABS-free, RoHs compliant, ozone resistant, UV resistant, torsion resistant, halogen free, oil resistant.

  • Standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m.
  • Other cable lengths on request.

Resources

M12 Industrial Ethernet cable, X-coded, 1.0 m, M12 jack straight - free line end, torsion, PURView DataSheet
M12 Industrial Ethernet cable, X-coded, 2.0 m, M12 jack straight - free line end, torsion, PURView DataSheet
M12 Industrial Ethernet cable, X-coded, 5.0 m, M12 jack straight - free line end, torsion, PURView DataSheet
M12 Industrial Ethernet cable, X-coded, 10.0 m, M12 jack straight - free line end, torsion, PURView DataSheet

Specifications

General Data
Fields of application:
  • Industrial Ethernet
  • harsh environment
Design: Ethernet-Connection cable
Shielding: shielded
Transmission technology: Copper
Cable Type: S/FTP
Number of twisting elements: 4
Twisting element: Pair
Wiring: 1 - 1
Color coding fiber/ wire(s): white/orange, orange, white/green, green, white/brown, brown, white/blue, blue
Color: green
Transmission characteristics
Category (ISO): 6A
Connections/interfaces
Connector technology interface 1: M12-jack
Connector technology interface 2: free line end
Number of positions/contacts interface 1: 8
Coding interface 1: X-coded
Conductor cross section, stranded wire [AWG max.]: AWG 24/7
Conductor diameter, stranded wire (bare copper) [mm max.]: 0.2 mm
Conductor diameter, stranded wire (bare copper) [inch max.]: 0.008 in.
Cable sheath diameter [mm min.]: 9.4 mm
Cable sheath diameter [inch min.]: 0.37 in.
Electrical characteristics
Current carrying capacity: 0.5 A at 40 °C
Insulation resistance: min. 100 MOhm
Mechanical data
Life - Number of mating cycles: min. 100
Maximum operating bending radius [mm]: 75 mm
Maximum operating bending radius [inch]: 2.953 in.
Maximum installation load [mm]: 141 mm
Maximum installation load [inch]: 5.551 in.
Shielding braid coverage: 85 %
Materials and material properties
Material - Conductor: Cu (copper)
Material - Conductor Insulation: foamed Polyolefin
Material - Cable jacket: PUR
Material - Body interface 1: Plastics
Material - Contact interface 1: CuZnPb (brass)
Material - Contact finish interface 1: Au (gold)
Material - Contact carriers interface 1: Plastics
Material - Union nut interface 1: CuZnPb (brass)
Material - Union nut finish interface 1: Ni (nickel)
Material - Pair shield: plastic film
Material - Pair shield finish: Al (Aluminium)
Material - Main shield: Cu (copper) braid
Material - Main shield finish: Sn (tin)
Flame retardancy: according to IEC 60332-1-2
Halogen free: yes
Oil resistance: yes
torsional: yes
RoHS: compliant
Environmental conditions
Temperature - Operating °C [min.]: -30 °C
Temperature - Operating °C [max.]: 90 °C
Temperature - Operating °F [min.]: -22 °F
Temperature - Operating °F [max.]: 194 °F
Particulate ingress interface 1: IP6X when plugged in
Liquid ingress/immersion interface 1: IPX5, IPX7 when plugged in
Pollution degree interface 1: 2
