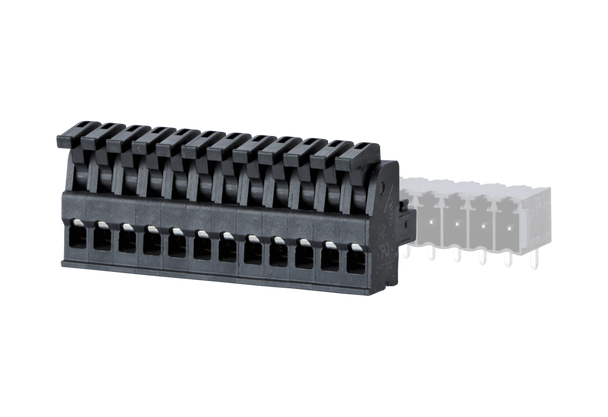

| SP043xxVBNN ASP043 | | View DataSheet |
|---|
| min. number of poles: | 2 |
|---|---|
| max. number of poles: | 12 |
| Insulating material class: | CTI 400 |
| clearance/creepage dist.: | 2.3 mm |
| Protection category: | IP20 |
| Min. insul. strip length: | 6 mm |
| Rated current: | 10 A |
| Connection capacity (single-wire): | 0,08 - 1,5 mm² |
|---|---|
| Connection capacity (single-wire): | AWG 28 - 16 |
| Connection capacity (multi-wire): | 0,08 - 1,5 mm² |
| Connection capacity (multi-wire): | AWG 28 - 16 |
| insulating material: | PA46 |
|---|---|
| flammability class: | V0 |
| spring material: | Spring steel |
| contact material: | CuSn |
| Contact surface: | Sn |
| Glow-Wire Flammability GWFI: | - |
| Glow-Wire Flammability GWIT: | - |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
