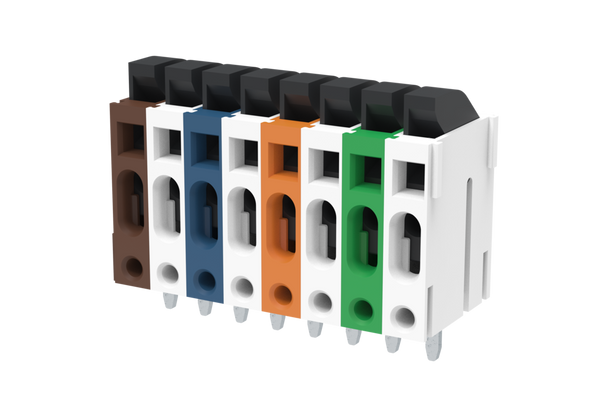

Metz Connect AIT0230899-002. IT02308HMNU002 ETHERNET

Description
Product Reviews

Description

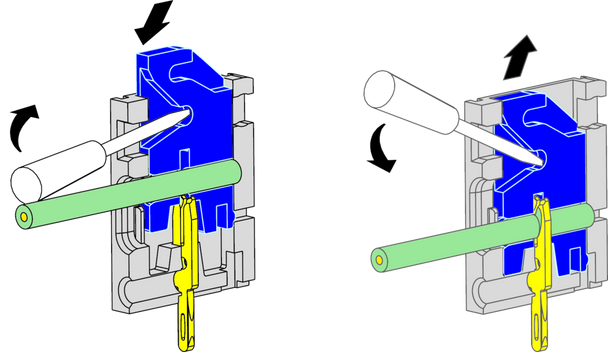

ethernet-compatible insulation displacement connector, solderable
suitable for up to 10 GBit Ethernet (IEEE 802.3an)
compliance with class E_A according to ISO/IEC 11801, DIN EN 50173-1
suitable for Power over Ethernet/Remote Powering (PoE, PoE plus, UPoE and 4PPoE)
centerline 3.50 mm, direction of connection 90°
modular
color coding for conductor colors according to T568 (brown/white/blue/white/orange/white/green/white)

Resources

IT02308HMNU002 ETHERNET \| AIT0230899-002	View DataSheet

Specifications

**General Data**
Solder pin length:	3.5 mm
Insulating material class:	CTI 600
clearance/creepage dist.:	2.3 mm
Protection category:	IP20
wire insulation:	1.8 mm

**Connection Data**
Connection capacity (single-wire):	0,2 - 0,34 mm²
Connection capacity (single-wire):	AWG 24 - 22
Connection capacity (multi-wire):	0,2 - 0,34 mm²
Connection capacity (multi-wire):	AWG 24 - 22

**Material**
insulating material:	PA66
flammability class:	V0
contact material:	CuSn
Contact surface:	Sn
Glow-Wire Flammability GWFI:	850 °C acc. to IEC 60695-2-12
Glow-Wire Flammability GWIT:	775 °C acc. to IEC 60695-2-13

**Climatic Data**
upper limit temperature:	105 °C
lower limit temperature:	-40 °C
