Sold Out
Metz Connect

Metz Connect AIT0230899-001. IT02308HMNU001 ETHERNET

No reviews yet Write a Review
$0.00

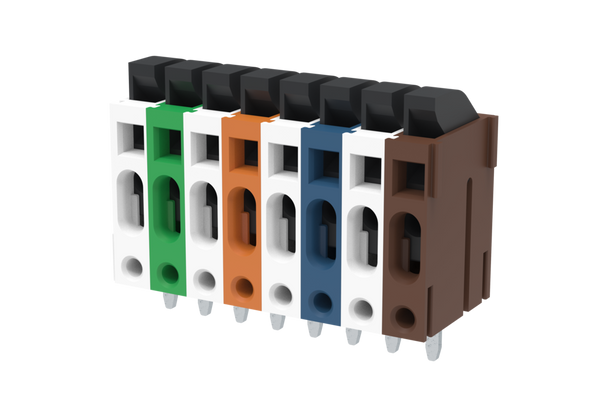

Metz Connect AIT0230899-001 IT02308HMNU001 ETHERNET | American Cable Assemblies
Metz Connect AIT0230899-001. IT02308HMNU001 ETHERNET
Metz Connect AIT0230899-001. IT02308HMNU001 ETHERNET
Metz Connect AIT0230899-001. IT02308HMNU001 ETHERNET
Metz Connect AIT0230899-001. IT02308HMNU001 ETHERNET
SKU:
MTZAIT0230899-001
Availability:
Call for pricing and availability
Minimum Purchase:
1 unit
Current Stock:
Mounting style:
wave solderable (THT)
Centerline:
3.50 mm
Direction of connection:
90 °
RoHS:
compliant

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

  • ethernet-compatible insulation displacement connector, solderable
  • suitable for up to 10 GBit Ethernet (IEEE 802.3an)
  • compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
  • suitable for Power over Ethernet/Remote Powering (PoE, PoE plus, UPoE and 4PPoE)
  • centerline 3.50 mm, direction of connection 90°
  • modular
  • color coding for conductor colors according to T568 (white/green/white/orange/white/blue/white/brown)

Resources

IT02308HMNU001 ETHERNET | AIT0230899-001View DataSheet

Specifications

General Data
Solder pin length: 3.5 mm
Insulating material class: CTI 600
clearance/creepage dist.: 2.3 mm
Protection category: IP20
wire insulation: 1.8 mm
Connection Data
Connection capacity (single-wire): 0,2 - 0,34 mm²
Connection capacity (single-wire): AWG 24 - 22
Connection capacity (multi-wire): 0,2 - 0,34 mm²
Connection capacity (multi-wire): AWG 24 - 22
Material
insulating material: PA66
flammability class: V0
contact material: CuSn
Contact surface: Sn
Glow-Wire Flammability GWFI: 850 °C acc. to IEC 60695-2-12
Glow-Wire Flammability GWIT: 775 °C acc. to IEC 60695-2-13
Climatic Data
upper limit temperature: 105 °C
lower limit temperature: -40 °C
