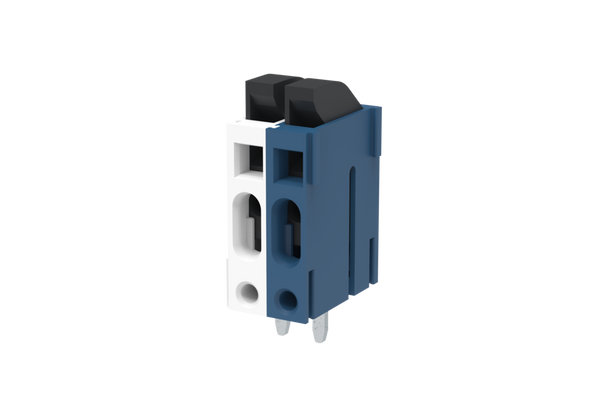

Description
- ethernet-capable insulation displacement connector, solderable
- centerline 3.50 mm, direction of connection 90°
- modular
- color coding for conductor colors according to SPE (white/blue)
Resources
| IT02302HDNU AIT0230299-000 | AIT0230299-000 | View DataSheet |
|---|
Specifications
| Solder pin length: | 3.5 mm |
|---|---|
| Insulating material class: | CTI 600 |
| clearance/creepage dist.: | 2.3 mm |
| Protection category: | IP20 |
| wire insulation: | 1.8 mm |
| Connection capacity (single-wire): | 0,2 - 0,34 mm² |
|---|---|
| Connection capacity (single-wire): | AWG 24 - 22 |
| Connection capacity (multi-wire): | 0,2 - 0,34 mm² |
| Connection capacity (multi-wire): | AWG 24 - 22 |
| insulating material: | PA66 |
|---|---|
| flammability class: | V0 |
| contact material: | CuSn |
| Contact surface: | Sn |
| Glow-Wire Flammability GWFI: | 850 °C acc. to IEC 60695-2-12 |
| Glow-Wire Flammability GWIT: | 775 °C acc. to IEC 60695-2-13 |
| upper limit temperature: | 105 °C |
|---|---|
| lower limit temperature: | -40 °C |
